Xrotor F722 36s 20x Stack Combo Hobbywing Convertible F765a Flight Controller ESC FC For Quadcopter 65A 55A

Name: Xrotor F722 36s 20x Stack Combo Hobbywing Convertible F765a Flight Controller ESC FC For Quadcopter 65A 55A
Brand: Hobbywing
Price: 17.90 USD

Wholesale Xrotor F722 36s 20x Stack Combo Hobbywing Convertible F765a Flight Controller ESC FC For Quadcopter 65A 55A from china suppliers

I2C : Supported

USB Port Type : Type-C

BEC Output : 5V @ 3A max; 10V @ 3A max

Dimension / Weight : 37(L)x 37(W)x 8(H)mm / 8g

Age Range : 14 Years & up

Material : PCB

Brand Name : Hobbywing

Power Input : 4-8S LiPo

OSD : AT7456E

Model Number : XRotor Flight Controller F7

Price : $17.90-37.90 / piece

Type : RC Airplane Parts

MOQ : 1 piece

Gender : Unisex

IMU(Gyro) : MPU6500

Use : Vehicles & Remote Control Toys

VTX Type : Support analog video transmission and digital vide

MCU : STM32F722

Place of Origin : China, Guangdong China

Contact Now

Product Features
OSD	AT7456E
Place of Origin	Guangdong, China
VTX Type	Support analog video transmission and digital video transmission
Age Range	14 Years & up
Use	Vehicles & Remote Control Toys
Material	PCB
Gender	Unisex
Model Number	XRotor Flight Controller F7
BEC Output	5V @ 3A max; 10V @ 3A max
Brand Name	Hobbywing
IMU(Gyro)	MPU6500
Type	RC Airplane Parts
Dimension / Weight	37(L)x 37(W)x 8(H)mm / 8g
USB Port Type	Type-C
I2C	Supported
MCU	STM32F722
Power Input	4-8S LiPo

          Shenzhen Hobbywing Technology Co., Ltd.


Why Choose US?
          Leading Drone Brushless Thrust System Manufacturer in China

- With professional technical team support
- 100% product quality protection
- 100% on-time shipment protection
- 100% payment protection by Alibaba
- Skilled workers and strict quality inspection

>>> We're Hobbywing Official Store.
The first company in China to engage in the R&D of brushless power systems for drones and RC model products. With about 20 years experience in this field.

>>> Looking for distributors and welcome to contact us for specific solutions

Please send me the requirement and quantity you need, and we'll provide you with a good price.


Applications	300mm above FPVs
Brand Name	Hobbywing
Model Number	XRotor Flight Controller F7
Private Mold	Yes
Power Input	4-8S LiPo
BEC Output	5V @ 3A max; 10V @ 3A max

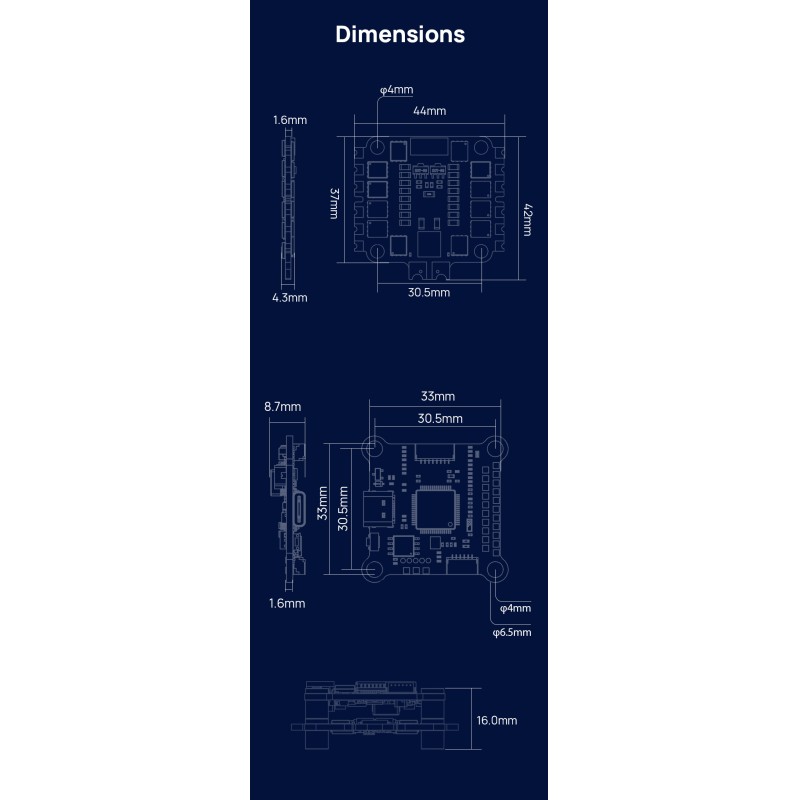

Mounting Hole	30.5 x 30.5mm(M3)
Dimension / Weight	37(L)x 37(W)x 8(H)mm / 8g
VTX Type	Support analog video transmission and digital video transmission
USB Port Type	Type-C
I2C	Supported
UART	6 sets, UART1-6 Rx&Tx
ESC Signal	M1-M4 on ESC connector and M5-M6 on the CH5, CH6 pads
MCU	STM32F722
IMU(Gyro)	MPU6500
Barometer	Supported
OSD	AT7456E

Xrotor F722 36s 20x Stack Combo Hobbywing Convertible F765a Flight Controller ESC FC For Quadcopter 65A 55A

          If you're interested, Please send a inquiry to get the data sheet.
