New Dle200 Cc Gasoline Engine for Paramotor ( Standard Version)

Bore : 55mm

MOQ : 1 piece

Material : ABS

Reduction Ratio : 1:2.7

Displacement : 200CC

Transmission Type : Belt

private mold : No

Compression Ratio : 10:1

compatible brand : Autel

Place of Origin : China, Guangdong China

Brand Name : OEM

Power : 23HP/8000rpm

Price : $1,732.60-1,949.20 / piece

Contact Now

Product Features
Reduction Ratio	1:2.7
brand name	OEM
place of origin	Guangdong, China
Displacement	200CC
Power	23HP/8000rpm
Compression Ratio	10:1
Transmission Type	Belt
Bore	55mm

NEW DLE200 DLE 200CC Gasoline Engine for Paramotor ( Standard Version)

Product Description

This engine is not a toy , before staring the engine ,read the operators manual carefully ,if failure to do so may result in personal injuries , DLE refuses any liability;Before each operation, check the engine mount ,propeller and airframe carefully to ensure all engine screws and nuts is tight . Loctite(242,243) is strongly recommended during the installation. CAUTION : During the break-in period, it is recommended that the engine be installed on the aircraft or a test stand with an appropriate shock absorber. Otherwise it is probable that vibration could rebound back to the engine and serious damages may occur during the break-in period. For your safety and the safety of others, please do not stand in front or in line with the propeller when the engine is running.

New Dle200 Cc Gasoline Engine for Paramotor ( Standard Version)

Specification

Type	Two stroke
Bore	55mm
Stroke	42mm
Displacement	200CC
Power	20HP/7500rpm
Compression ratio	10:1
Speed Reducing ratio	1:2.7
Driving mode	Belt
Starting Model	Electronic starter
Net weight(don't include exhaust pipe)	10.3 Kg
Simple exhaust pipe weight	1.1 Kg
Enhanced exhaust pipe weight	2.2 Kg
Spark plug	DLE-8A
Petrol	93# ,97#
Power output	14V 1A
Optional power output	14V 4A
Propeller	1220mm

FAQ

Q1: Are you a factory or a trading company? What is the minimum order quantity? Yes, we are trading company,have authorized agents for multiple brands direct salesand have some inventory items. You can order 1 piece for testing.

Q2: ls it possible to get a sample?
We offer sample when you pay sample fee.

Q3: How much for the shipping cost?
According to your quantity and country. We are check the freight for you. and choosebest shipping way.

Q4: How long time can iget my package?
Usaually, the ready time is 3-5 days, the shipping time is 3-7 days

Q5: Can you provide OEM&ODM services ?
Of course, including software, packaging, product logos, etc. For more details, pleaseconsult customer service,

Q6: How do you ensure the quality of products?
Our products comply with the 1S09001 quality system and CE/FCC/ROHS standardsAll of our products undergo strict quality control inspections during the productionprocess. Especially for exported products, a 72 hour aging test is required to ensurethat there are no issues before shipment.

Q7:How do you arrange the transportation?
lf the sample order is recommended to be shipped by express delivery (7-10 days) orair freight (10-15 days), and if mass production is recommended, sea freight is morefavorable.Please consult customer
service for more details!

Any other question, please feel free to contact us. Thanks

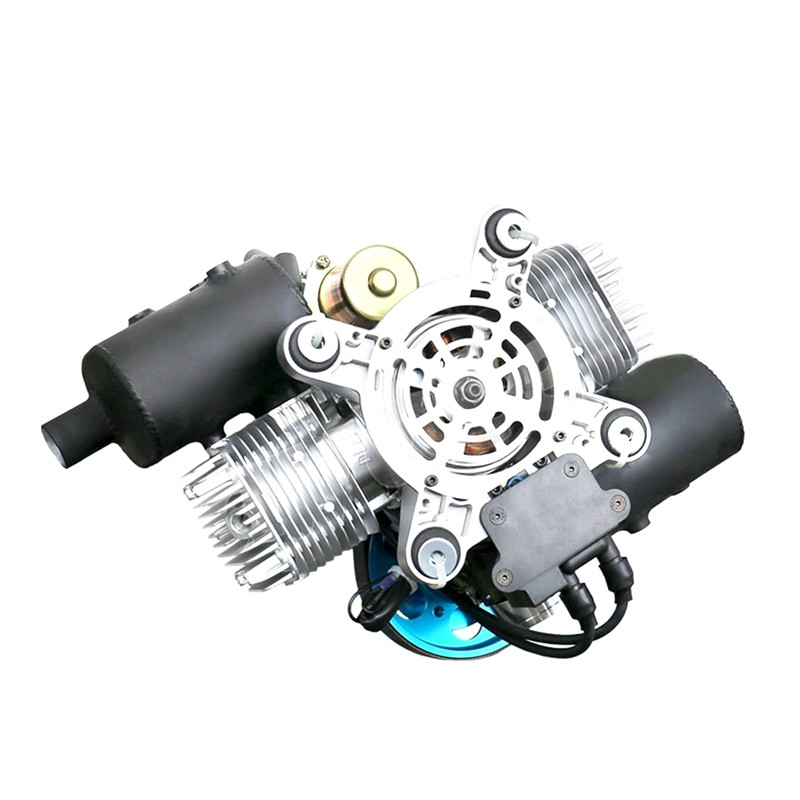

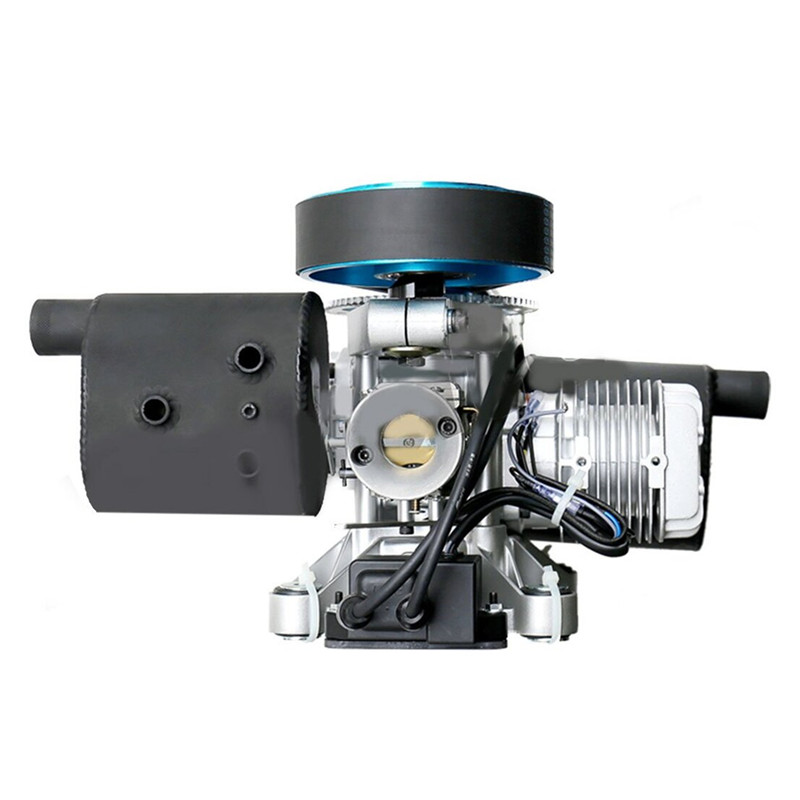

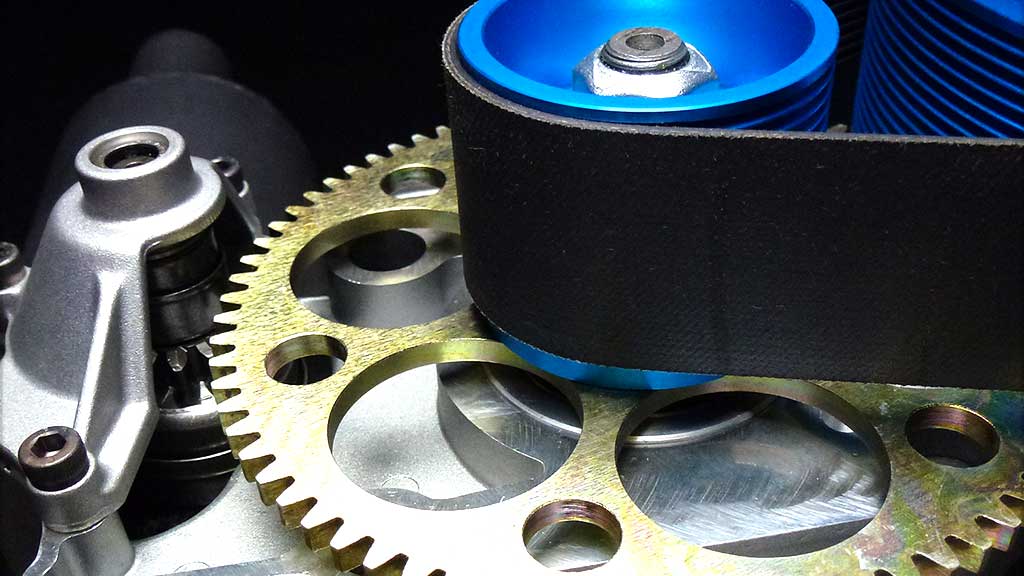

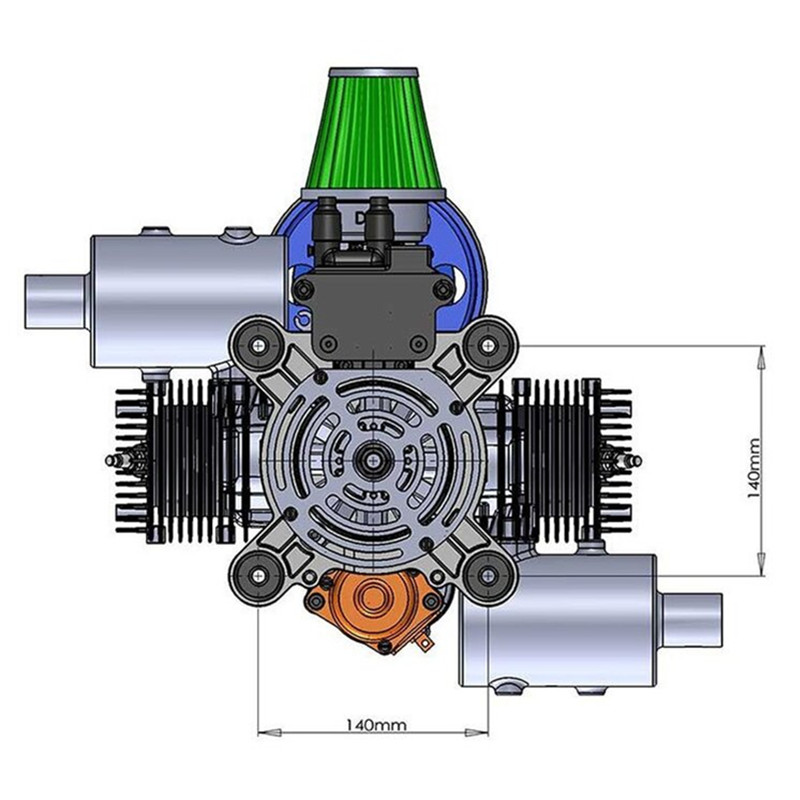

New Dle200 Cc Gasoline Engine for Paramotor ( Standard Version) Images
