Matek F405-WMN Flight Controller Stack STM32FRGT6 ICM42688P SPL06 Barometer Osd BlackBox 16M Flash For Fpv Drone DIY Parts

Name: Matek F405WMN Flight Controller Stack STM32FRGT6 ICM42688P SPL06 Barometer Osd BlackBox 16M Flash For Fpv Drone DIY Parts
Brand: Matek
Price: 44.60 USD

Wholesale Matek F405-WMN Flight Controller Stack STM32FRGT6 ICM42688P SPL06 Barometer Osd BlackBox 16M Flash For Fpv Drone DIY Parts from china suppliers

compatible brand : Others

Brand Name : Matek

MOQ : 2 pieces

Material : PVC

private mold : Yes

Place of Origin : China, Guangdong China

Price : $44.60-50.60 / piece

Contact Now

Product Features
brand name	Matek
private mold	Yes
place of origin	Guangdong, China

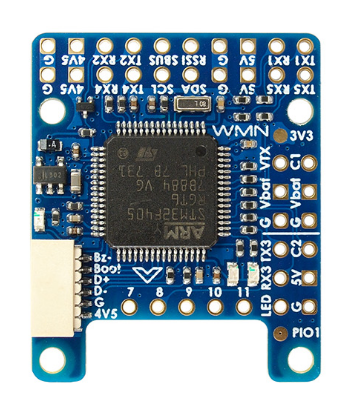

Matek F405-WMN Flight Controller Stack STM32FRGT6 ICM42688P SPL06 Barometer Osd BlackBox 16M Flash For Fpv Drone DIY Parts

         FC Specifications
* MCU: STM32F405RGT6, 168MHz , 1MB Flash
* IMU: ICM42688-P
* Baro: SPL06-001
* OSD: AT7456E
* Blackbox: 16M Flash
* 5x UARTs, 1x Softserial_Tx option(INAV)
* 12x PWM outputs
* 1x I2C
* 3x ADC (VBAT, Current, RSSI)
* 1x spare PINIO
* USB/Beep Extender with Type-C(USB2.0)
* Built in inverter on UART2-RX for SBUS input
* Switchable Dual Camera Inputs

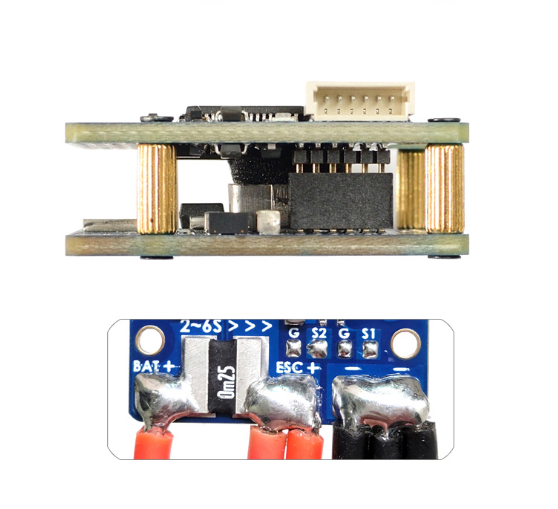

Power
* 6~30V DC IN (2~6S LiPo)
* 132A Current Sense (INAV Scale 250, ArduPilot 40A/V)
* PDB/Current sense resistor: 90A continuous, 132A burst.
* BEC 5V 1.5A for FC & Peripherals
* BEC Vx 5A for servos, 5V/ 6V option
* Vbat for VTX and camera
* LDO 3.3V 200mA
* Battery Voltage Sensor: 1k:20k

FC Firmware
* ArduPilot: MatekF405-TE
* INAV: MATEKF405TE (INAV 5.0 or newer)

Physical
* Dimensions: 31 x 26 x 16.5 mm
* Mounting: 22 x 22mm, 2mm
* Weight: 10g

Including
* 1x F405-WMN
* 1x USB(Type-C)/Beep (Passive buzzer) Extender 20cm JST-SH-6P to JST-SH-6P cable for USB extender
* Dupont 2.54 pins (Board is shipped unsoldered)


Recommend Products

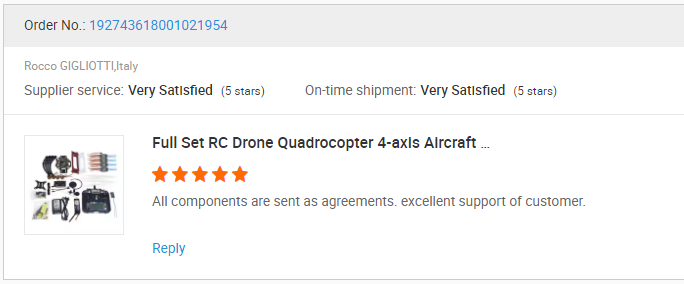

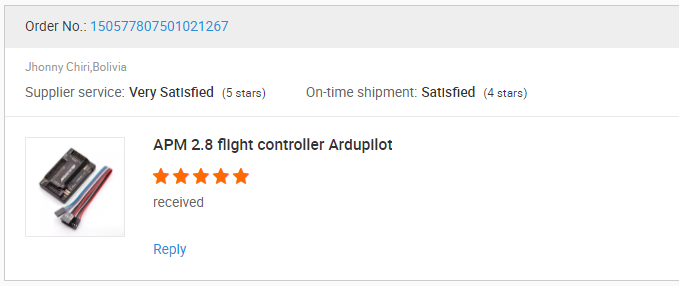

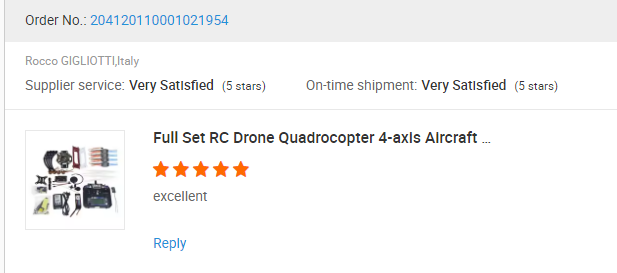

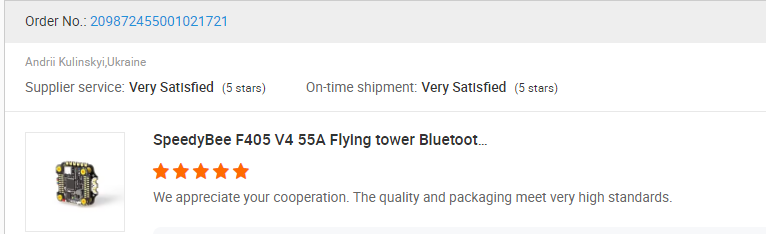

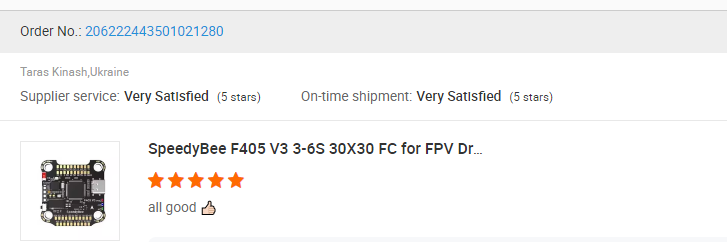

Customers Feedback
