RadioMaster 2.4GHz RM 4IN1 Multi-protocol Module FPV TX Transmitter Connector Long Range Radio for Racing Drone

Name: RadioMaster 24GHz RM 4IN1 Multiprotocol Module FPV TX Transmitter Connector Long Range Radio for Racing Drone
Brand: RadioMaster
Price: 56.50 USD

Wholesale RadioMaster 2.4GHz RM 4IN1 Multi-protocol Module FPV TX Transmitter Connector Long Range Radio for Racing Drone from china suppliers

Place of Origin : Guangdong, China

private mold : No

Material : ABS

Price : $56.50-65.90 / piece

MOQ : 2 pieces

Brand Name : RadioMaster

compatible brand : FPV Drone

Contact Now

Product Description

RadioMaster 2.4GHz RM 4IN1 Multi-protocol Module FPV TX Transmitter Connector Long Range Radio for Racing Drone

Specification

* Item: RM 4IN1 Module

* Operational voltage: 4.5-8.4V

* Operational frequency: 2.4G ISM band (2400mHz - 2483mHz)

* Operational current:≈100mA

* RF Gain: +20dBm

* Weight: 30g (without antenna)

* Dimension: 73*42*22mm (without antenna)

The RadioMaster 4IN1 external module is a multi-protocol module that integrates CC2500, NRF24L01, A7105 and CYRF6936 RF chips.Designed for OpenTX and EdgeTX systems, the RM 4IN1 module allows the radio to connect with most mainstream protocols on the market.

Compatible with more than 70 RF protocols

RM 4IN1 is compatible with more than 70 RF protocols, including DSMX, Flysky, SFHSS, HiTec, HoTT, OMP, Radiolink, Frsky and many more.

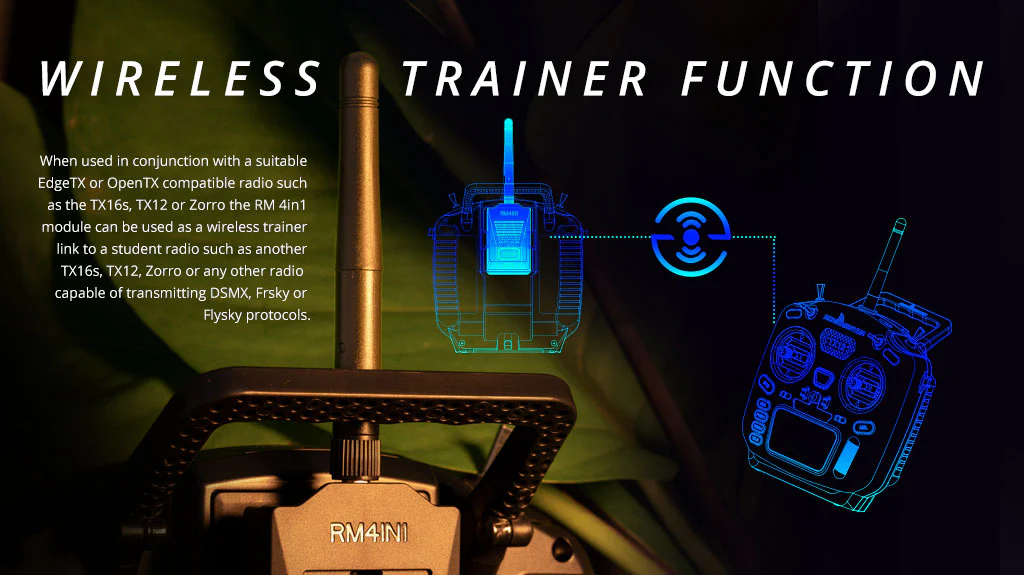

Wireless trainer function

When used in conjunction with a suitable EdgeTX or OpenTX compatible radio such as the TX16s, TX12 or Zorro the RM 4in1 module can be used as a wireless trainer link to a student radio such as another TX16s, TX12, Zorro or any other radio capable of transmitting DSMX, Frsky or Flysky protocols.

FCC Version and EU LBT Version are Available

Currently, we provide the standard FCC version and the EU LBT version. FCC Version supports all MPM protocols. And EU LBT Version is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX.

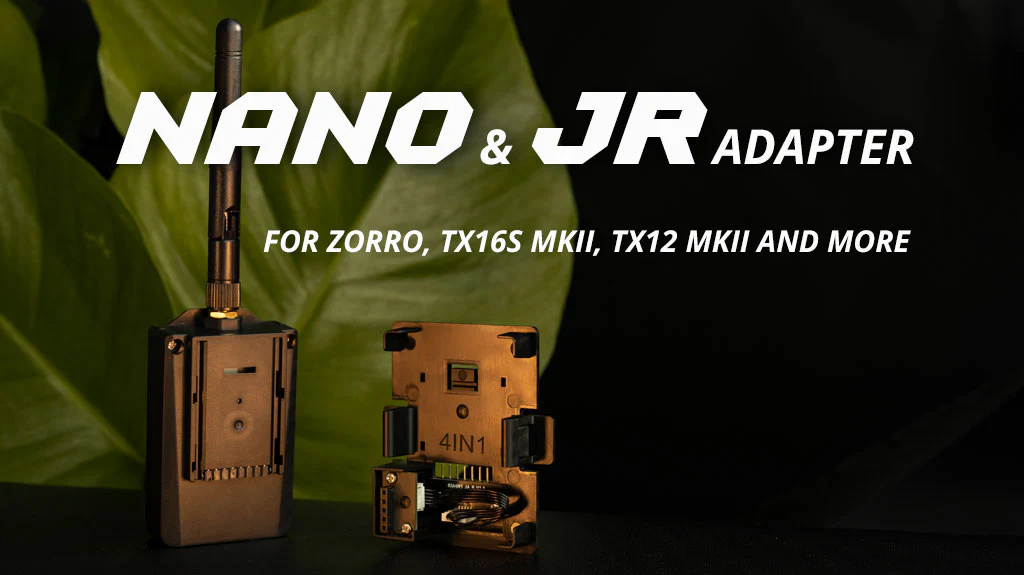

NANO & JR Adapter

The RadioMaster 4IN1 module is a nano module by default. A JR adapter is included as standard. Support Zorro, Boxer, TX16S MKII, TX12 MKII and more.

Dimensions

Package Includes

* 1 * RM 4IN1 Module
* 1 * JR Adapter
* 1 * Stick Antenna

We still have more Cost-effective fpv drones and parts

FPV drone source factory, Supports customization
FPV drone spare parts, one-stop supply

FAQ

Q1.Are you factory or trade company? A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers. Q2.Could you offer OEM&ODM service? A2:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5. Q3.Do you guarantee the quality of products? A3:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards. Q4.How long is the production cycle? A4:Sample order is 4-5days. Bulk orders take 9-10 days. Q5.What shipping ways do you have? A5:We could ship the goods by DHL, UPS, Fedex, Air Mail. Q6.Whats is the payment terms? A6:T/T, Ablibaba trade assurance.

RadioMaster 2.4GHz RM 4IN1 Multi-protocol Module FPV TX Transmitter Connector Long Range Radio for Racing Drone Images
