Dle170efi Electronic Fuel Injection Gasoline Engine Two-Stroke Rc Airplane Long Endurance Power Oil Powered Model Vtol

Model Number : DLE170EFI

Material : Metal

MOQ : 1 unit

Place of Origin : China, Guangdong China

Gender : Unisex

Age Range : 14 Years & up

Use : Vehicles & Remote Control Toys

Type : Engine

Brand Name : DLE

Engine : 170CC

Price : $3,590-5,212 / unit

Contact Now

Product Features
Type	Engine
Place of Origin	Guangdong, China
Age Range	14 Years & up
Use	Vehicles & Remote Control Toys
Material	Metal
Gender	Unisex
Model Number	DLE170EFI
Engine	170CC

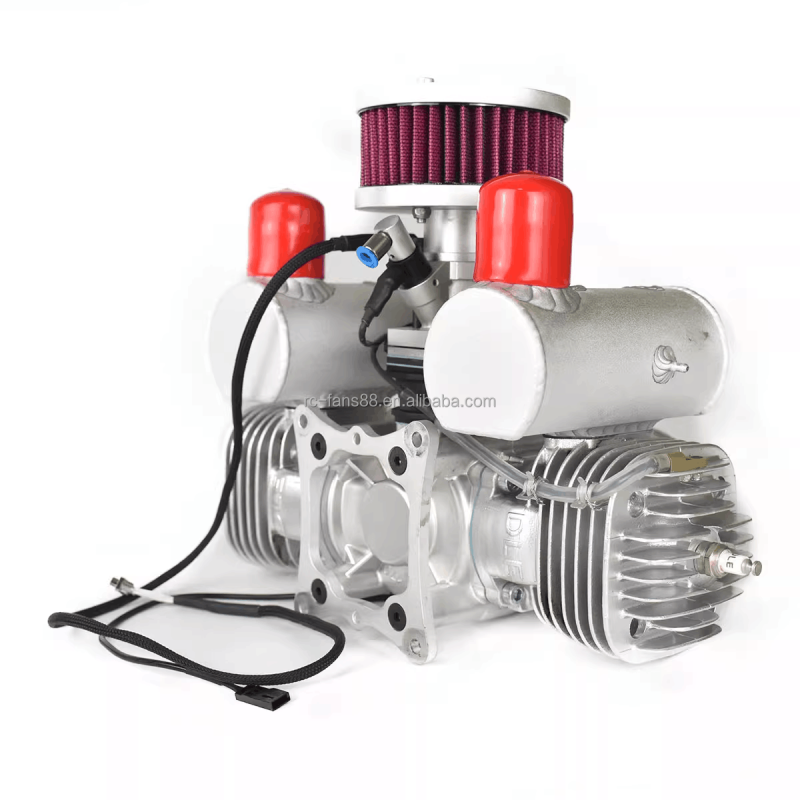

DLE170EFI Electronic Fuel Injection Gasoline Engine Two-stroke RC Airplane Long Endurance Power Oil Powered Model Engine VTOL

Product Description

 The DLE170 EFI provides drones with increased reliability and power while addressing the shortcomings commonly found in two-stroke engines. The newly designed fuel pump, with self-priming capability, adopts closed-loop pressure control to precisely control the fuel pressure without returning to the fuel tank. The DLE170 EFI incorporates the latest engine technology from LUTAN EFI and DLE Engine. Provide RS232 communication protocol to obtain engine running data in real time. Power: 17.5HP/8500rpm
Static thrust: 35kg/100m height
Static thrust: 31.5kg/1800m height
Recommended propeller: 30x10; 30x12; 32x10;
Displacement: 170cm3
Lubrication ratio: 40:1
Weight (engine with air intake): 4.1kg
Weight (ECU): 110g
Weight (fuel pump): 170g *2
Voltage: 12V
Power Consumption: 1 Amp peak, 1 hour / 1,000mAh
Temperature range: -20° - 50° C

Dle170efi Electronic Fuel Injection Gasoline Engine Two-Stroke Rc Airplane Long Endurance Power Oil Powered Model Vtol

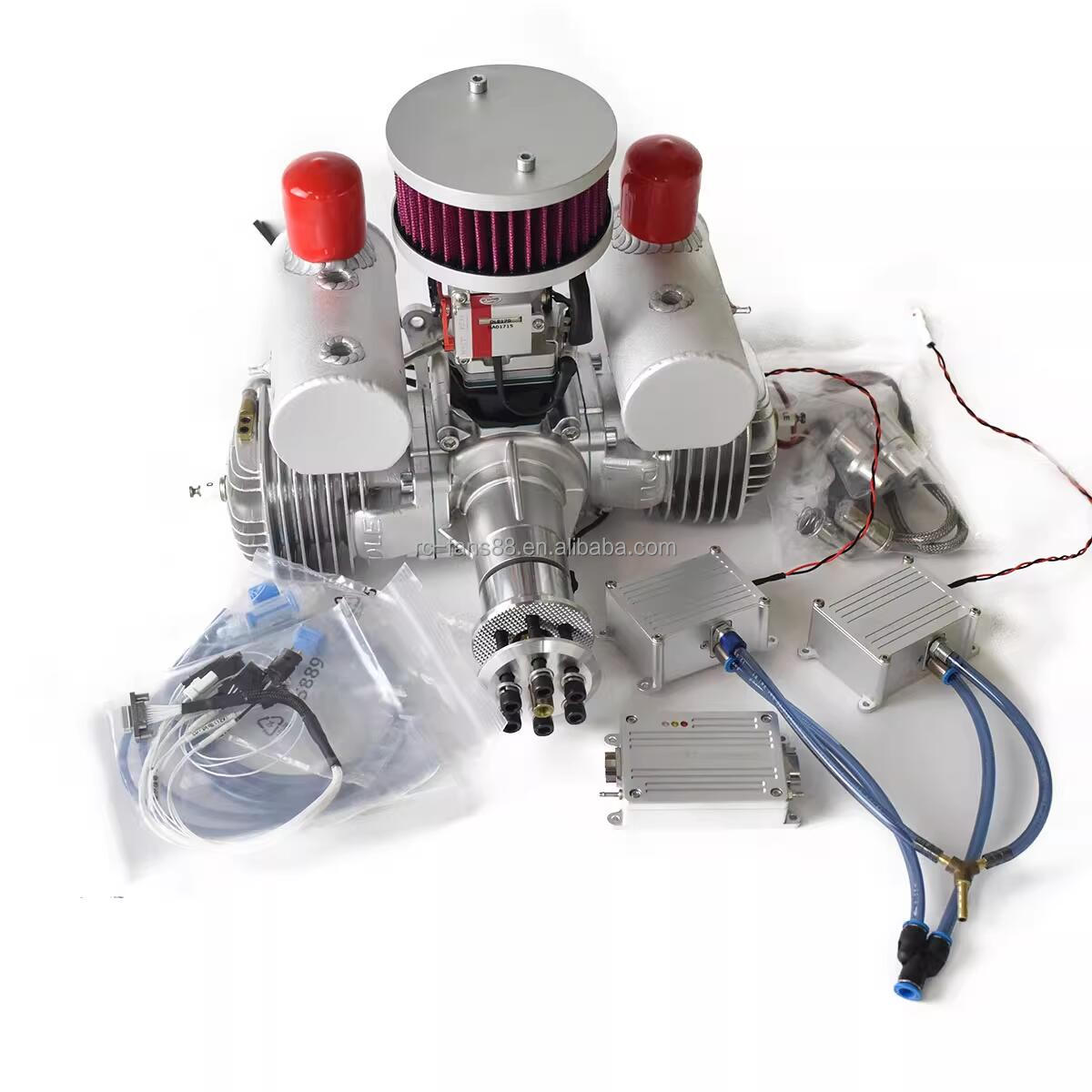

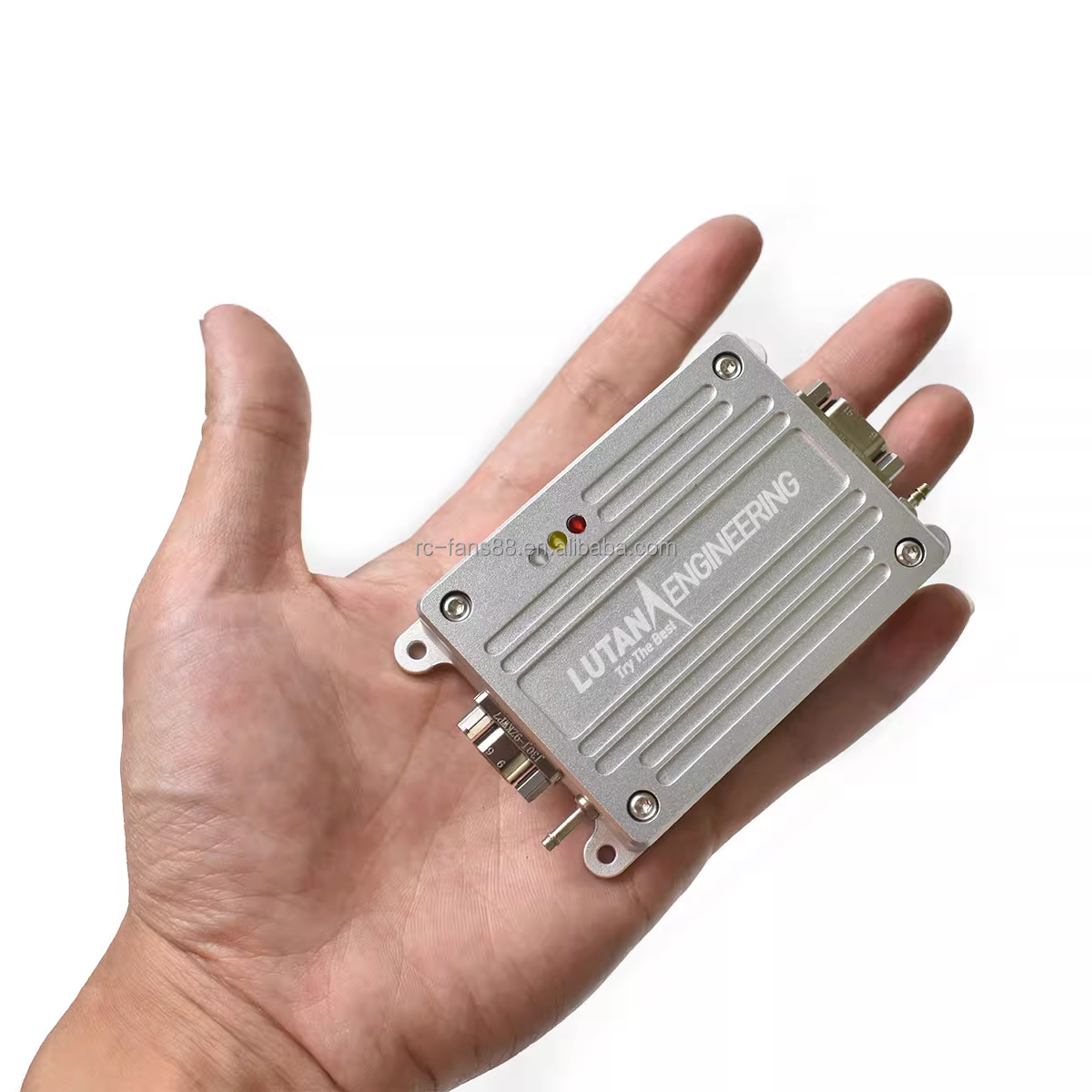

Engine package includes: LUTAN EFI ECU LUTAN self-priming fuel pump wiring harness CDI module Isolation Rack
