Dle60 Efi Uav Engine Cc Twin-Cylinder Electronic Fuel Injection

Static Thrus : 15.2kg/100m height

Age Range : 14 Years & up

Brand Name : DLE

Model Number : DLE60-EFI

Place of Origin : China

Power : 7HP/8500rpm

Displacement : 61cm3

Website : www.lxrcmodel.com

Type : Motor Components

Material : Metal

Recommended Propeller : 22x8; 22x10; 23x8; 23x10;

Static Thrust : 13.5kg/1800m height

Gender : Unisex

MOQ : 1 piece

Price : $2,609.88-3,105.31 / piece

Use : Vehicles & Remote Control Toys

Contact Now

Product Features
Recommended Propeller	22x8; 22x10; 23x8; 23x10;
Age Range	14 Years & up
Use	Vehicles & Remote Control Toys
Website	www.lxrcmodel.com
Material	Metal
Gender	Unisex
Model Number	DLE60-EFI
Displacement	61cm3
Brand Name	DLE
Type	Motor Components
Static Thrus	15.2kg/100m height
Static Thrust	13.5kg/1800m height
Power	7HP/8500rpm

DLE60 EFI UAV Engine 60cc Twin-Cylinder Electronic Fuel Injection Engine

Product Description

System overview
The DLE60 EFI provides drones with increased reliability and power while addressing the shortcomings commonly found in two-stroke engines. The newly designed fuel pump, with self-priming capability, adopts closed-loop pressure control to precisely control the fuel pressure without returning to the fuel tank. The DLE60 EFI incorporates the latest engine technology from LUTAN EFI and DLE Engine. Provide RS232 communication protocol to obtain engine running data in real time.

Dle60 Efi Uav Engine Cc Twin-Cylinder Electronic Fuel Injection

Specification

Power	7HP/8500rpm
Static thrust	15.2kg/100m height
Static thrust	13.5kg/1800m height
Recommended propellers	22x8; 22x10; 23x8; 23x10;
Displacement	61cm³
Lubrication ratio	40:1
Weight (engine with air intake)	1.85kg
Weight (ECM)	110g
Weight (fuel pump)	170g
Voltage	12V
Power Draw	1 Amp peak, 1 hour / 1,000mAh
Temperature range	-20° - 50° C

Packing & Delivery

The Engine Package Includes:
Lutan EFI ECU
LUTAN self-priming fuel pump
wiring harness
CDI module
Isolation Rack

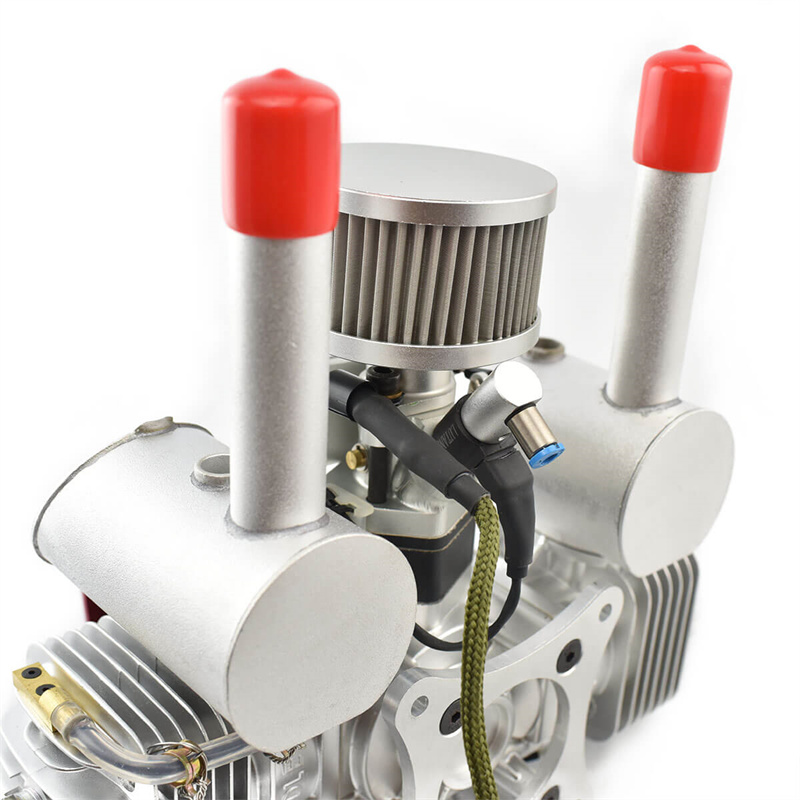

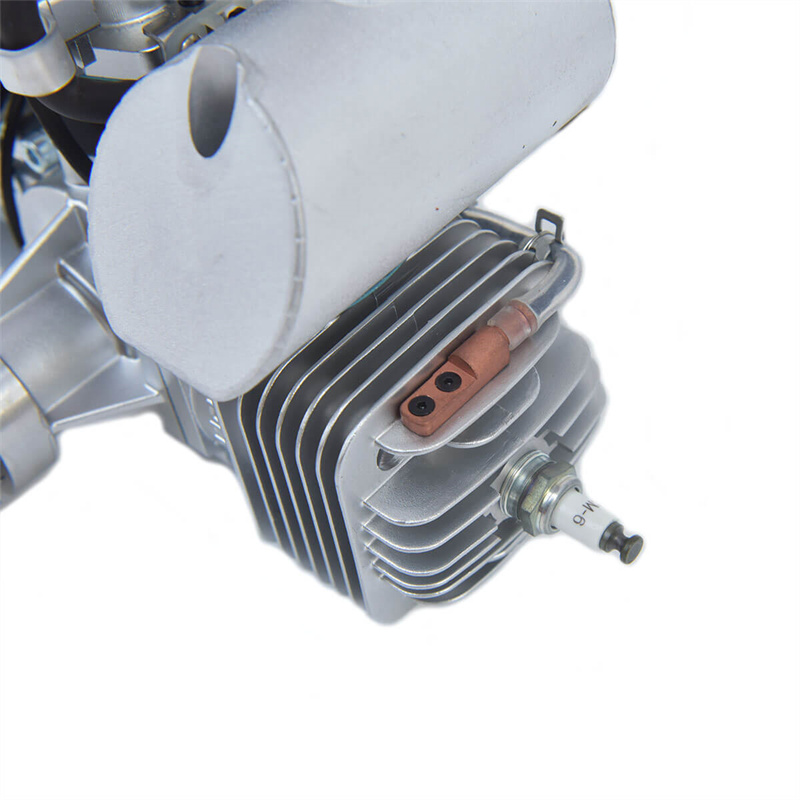

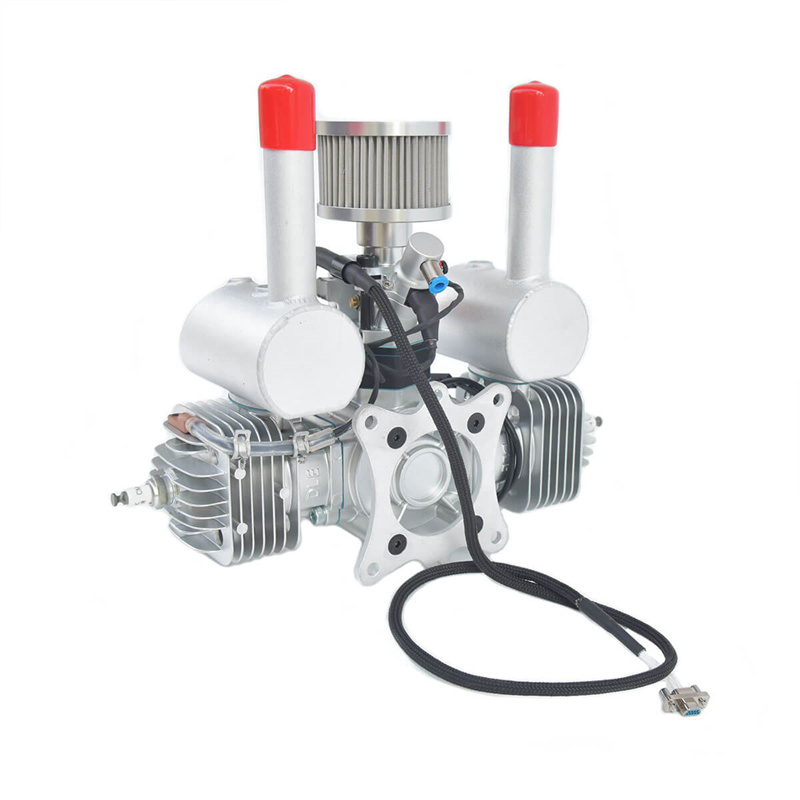

Dle60 Efi Uav Engine Cc Twin-Cylinder Electronic Fuel Injection Images
