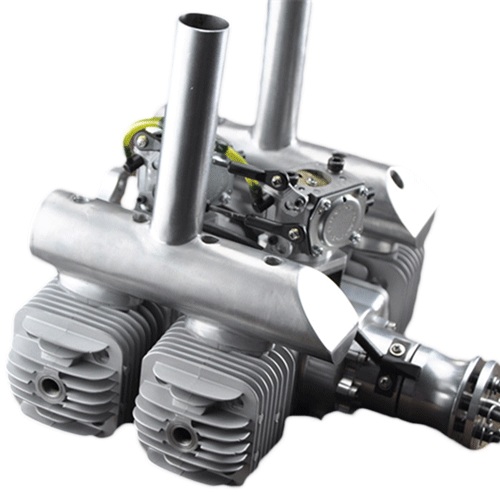

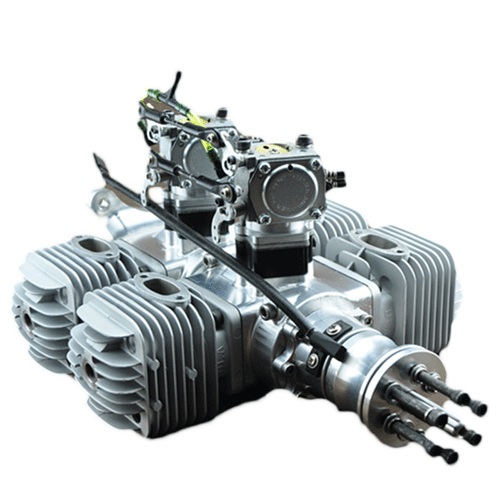

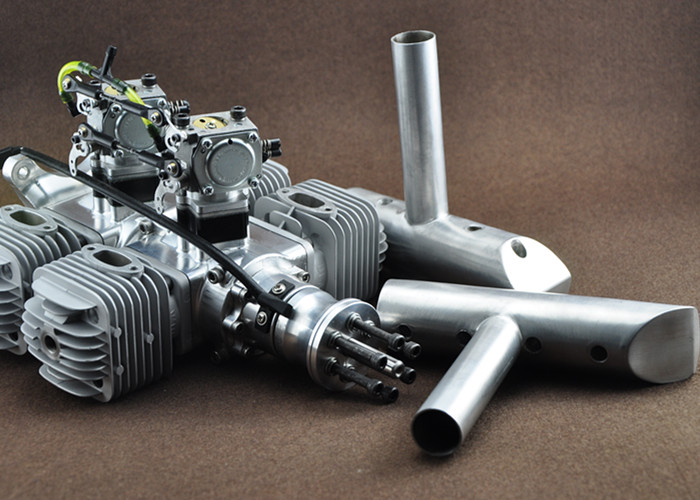

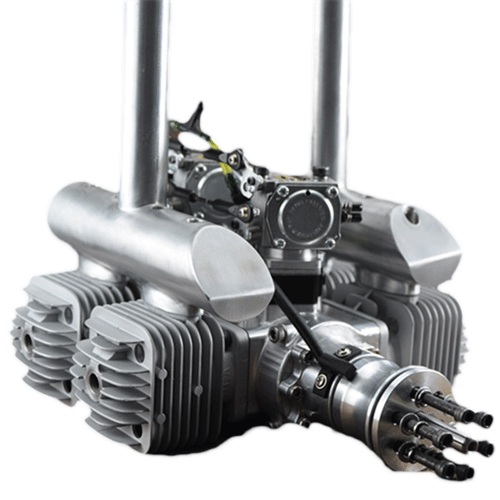

DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine

Output : 13HP

Cylinder arrangement : four boxer

Propeller Recommended : 28*10,28*8 ,32*8 ,27*10 29*10,29*10

Fuel : Gasoline + 2T synthetic oil

Spark Plug : DLA CM6,Iridium

private mold : No

Place of Origin : Shandong, China

speed range : 1300-6600 RPM

Cylinder Bore/ Stroke : 37MM/30MM

Pulling force : 30KG/1000 Meter altitude

Brand Name : DLA

MOQ : 2 sets

Model Number : DLA128

Price : $1,499.99-1,599.99 / set

Contact Now

Product Description

This engine is mainly used for fixed-wing with take-off weights (including Gasoline) not more than 18 KGS. Its crankcase,
crankshaft, central screws are all made of domestic high-performance materials by CNC processing method. With beautiful appearance, high-precision, drop resistance, fatigue resistance, good stability, strong power performance, 2 cylinders with independent ignition and independent fuel feeding.

For detailed information please contact sales:
Email: info@zelynuav.com
whatsapp/wechat: +86 17392281782

DLA 128 128CC Four Cylinder Engine for RC Model Airplane UAV Engine

Specification

Item	Value
Model Number	DLA128
Output	13HP
Cylinder Bore/ Stroke	37MM/30MM
speed range	1300-6600 RPM
Pulling force	30KG/1000 Meter altitude
Cylinder arrangement	four boxer
Fuel	Gasoline + 2T synthetic oil
Lubrication Ratio	25:1~30: 1(trial run) 40: 1~50:1(normal flying) 92# 93# gasoline 2T synthetic oil
ompression Ratio	7.6:1
Propeller Recommended	2810,288 ,328 ,2710 2910,2910
Spark Plug	DLA CM6,Iridium
Voltage	6.6v-8.4v, 2 LiPo batteries recommended.
Weight	Main engine: 3260g Exhaust pipe: 1262g Ignition: 180g Standoffs: 224g
Customization	According to Customer’s need and specifications
