Holybro High Precision DroneCAN Airspeed Sensor Pressure Measurement Module Precision Airspeed for UAVs Planes VTOLs Vehicles

Name: Holybro High Precision DroneCAN Airspeed Sensor Pressure Measurement Module Precision Airspeed for UAVs Planes VTOLs Vehicles
Brand: Holybro
Price: 27.35 USD

Wholesale Holybro High Precision DroneCAN Airspeed Sensor Pressure Measurement Module Precision Airspeed for UAVs Planes VTOLs Vehicles from china suppliers

Material : hardware

Place of Origin : Guangdong, China

Brand Name : Holybro

compatible brand : FPV

private mold : No

Price : $27.35-121.54 / piece

MOQ : 1 piece

Contact Now

Holybro High Precision DroneCAN Airspeed Sensor Pressure Measurement Module Precision Airspeed for UAVs Planes VTOLs Vehicles

Specifications

* MCU: STM32G473CE, 170 MHz, 128KB RAM, 512KB Flash

* Sensor: DLVR-L10D

* Pressure Range: 2500 Pa

* Burst Pressure: 75 kPa

* Airspeed Measurement: 0-226.8 km/h

* Accuracy: <1.0% Error

* Firmware: AP-Periph DroneCAN

* Communication Protocol: DroneCAN

* Compatible Flight Controllers: Any flight controller with a CAN interface running PX4 or Ardupilot firmware

* Working Voltage: 4.75~5.25V

* Current Consumption: ~100mA

* Dimensions: 29 x 35.5 x 16.5 mm (module), 91.5 x 28 x 30 mm (Pitot tube)

* Weight: 38.3g (Includes Pitot tube and tubing)

* Operating Temperature: -20 to 85℃

Overview
The Holybro DroneCAN Airspeed is an industrial-grade differential pressure measurement module designed for precision airspeed measurement in various UAVs, including planes, VTOLs, and other vehicles. Equipped with the DLVR-L10D Digital Pressure Sensor and running ArduPilot AP-Periph Firmware, this module ensures accurate and reliable airspeed data across different flight conditions.

Features
* Wide Pressure Range: Supports up to 2500 Pa and 226.8 km/h (141 mph) airspeed measurement.

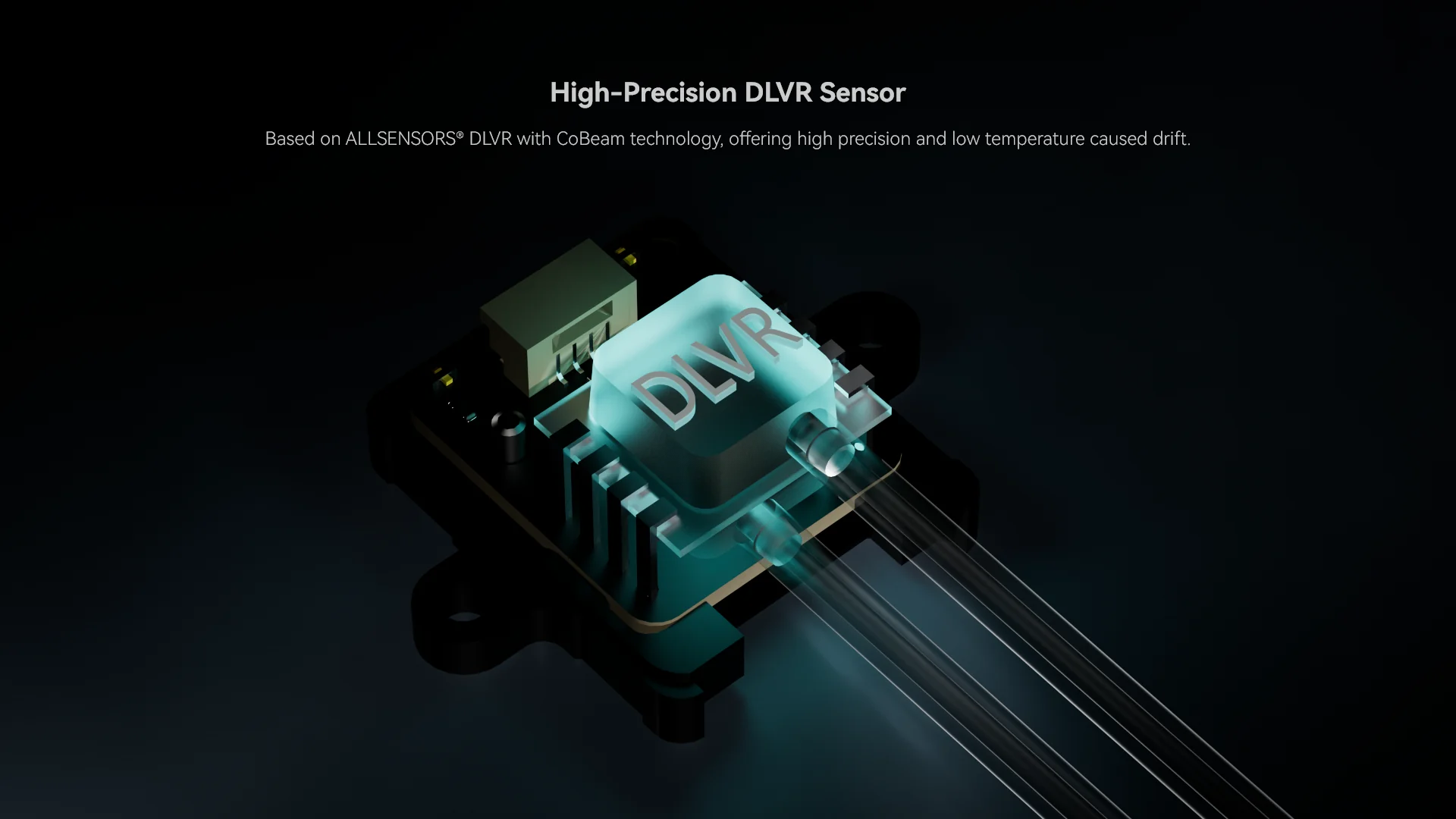

* High-Precision DLVR-L10DSensor : Based on ALLSENSORS® DLVR with CoBeam technology, providing high precision and low temperature drift.
* High Accuracy: Achieves better than 1% accuracy across a wide temperature range, ensuring reliable and accurate readings in demanding applications.
* DroneCAN Protocol: Compatible with both PX4 and ArduPilot platforms.

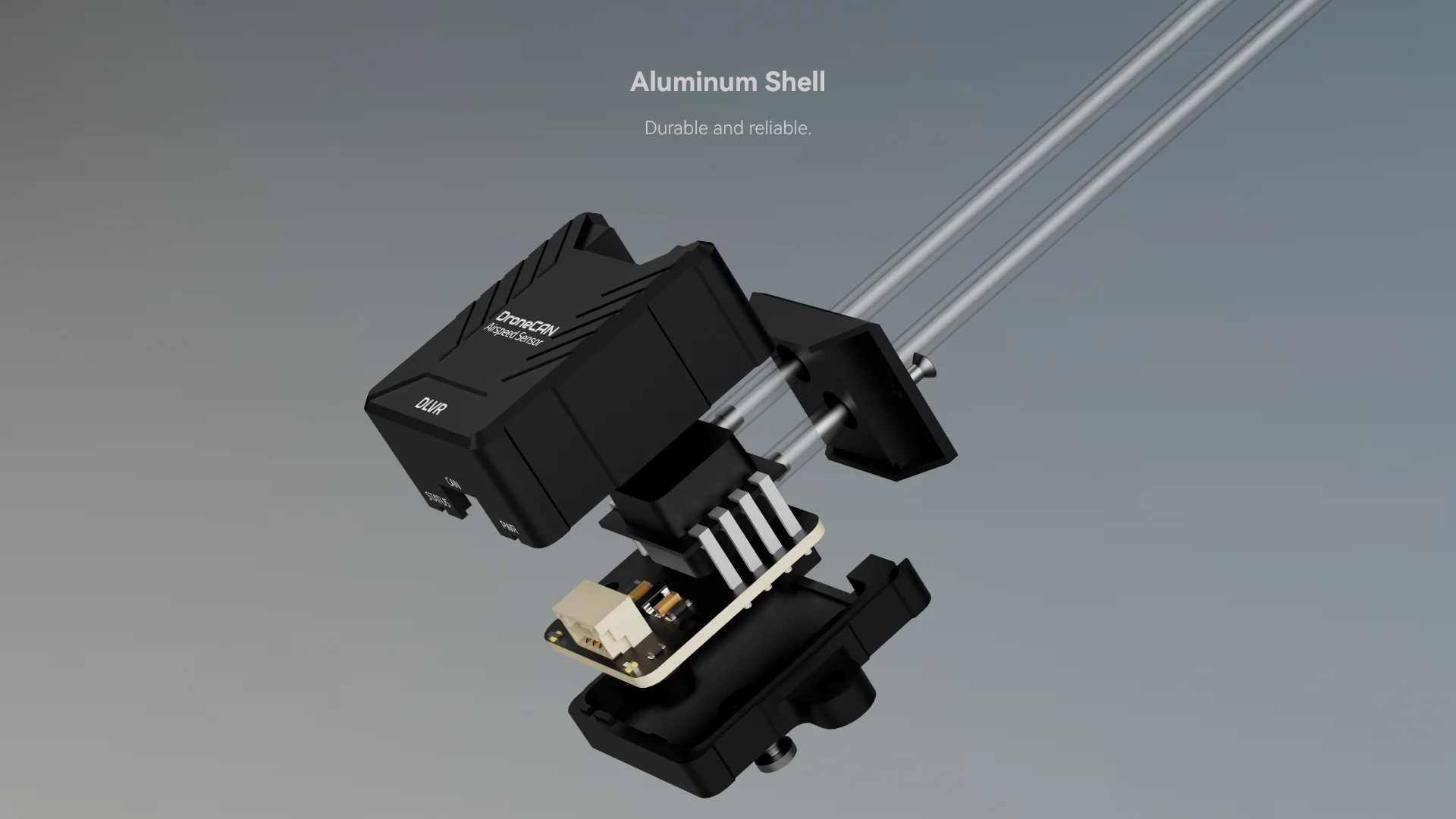

* Aluminum Shell: Durable and reliable construction

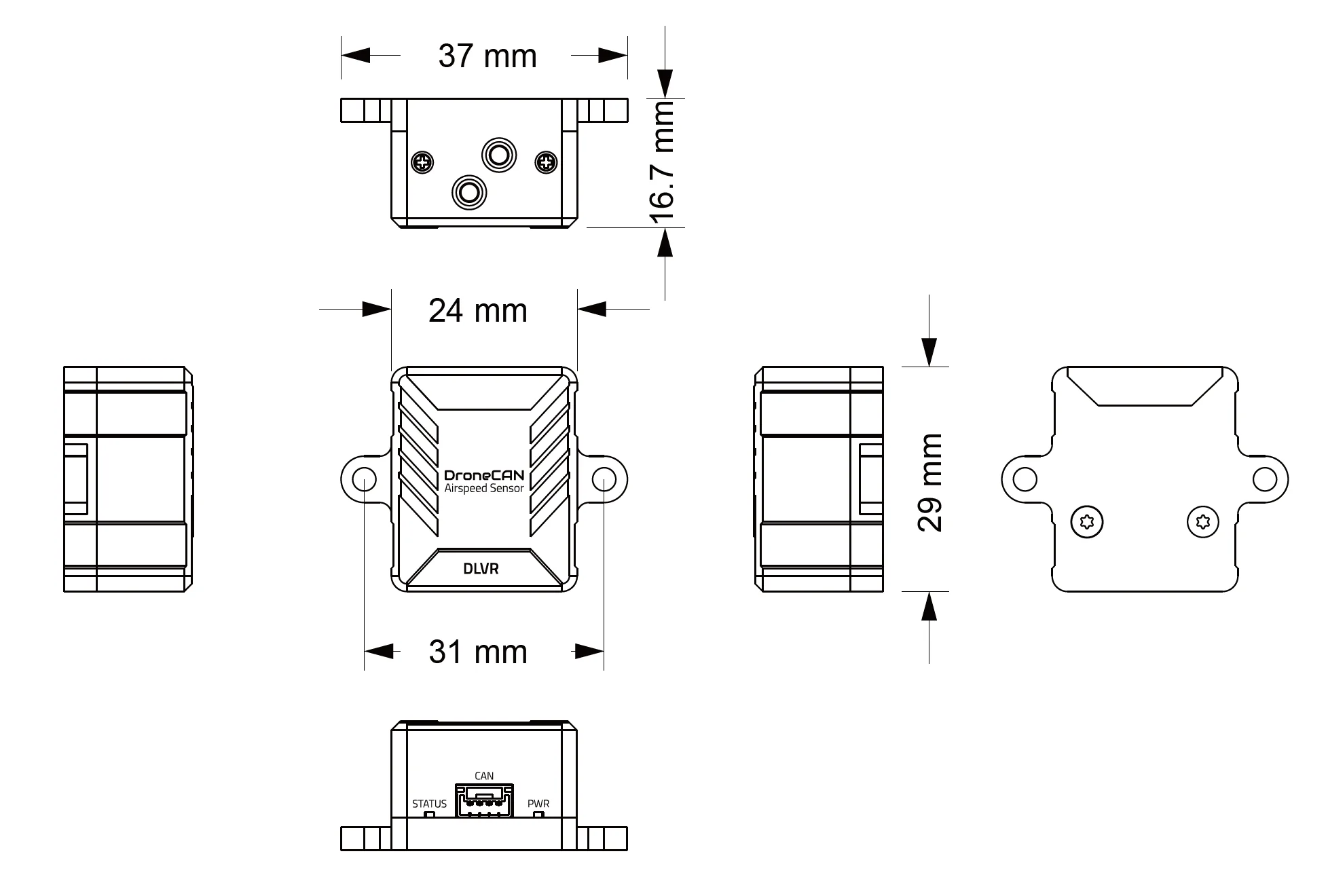

Dimension

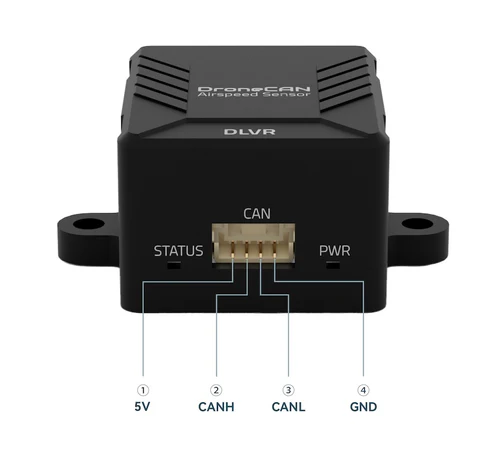

Pinout
