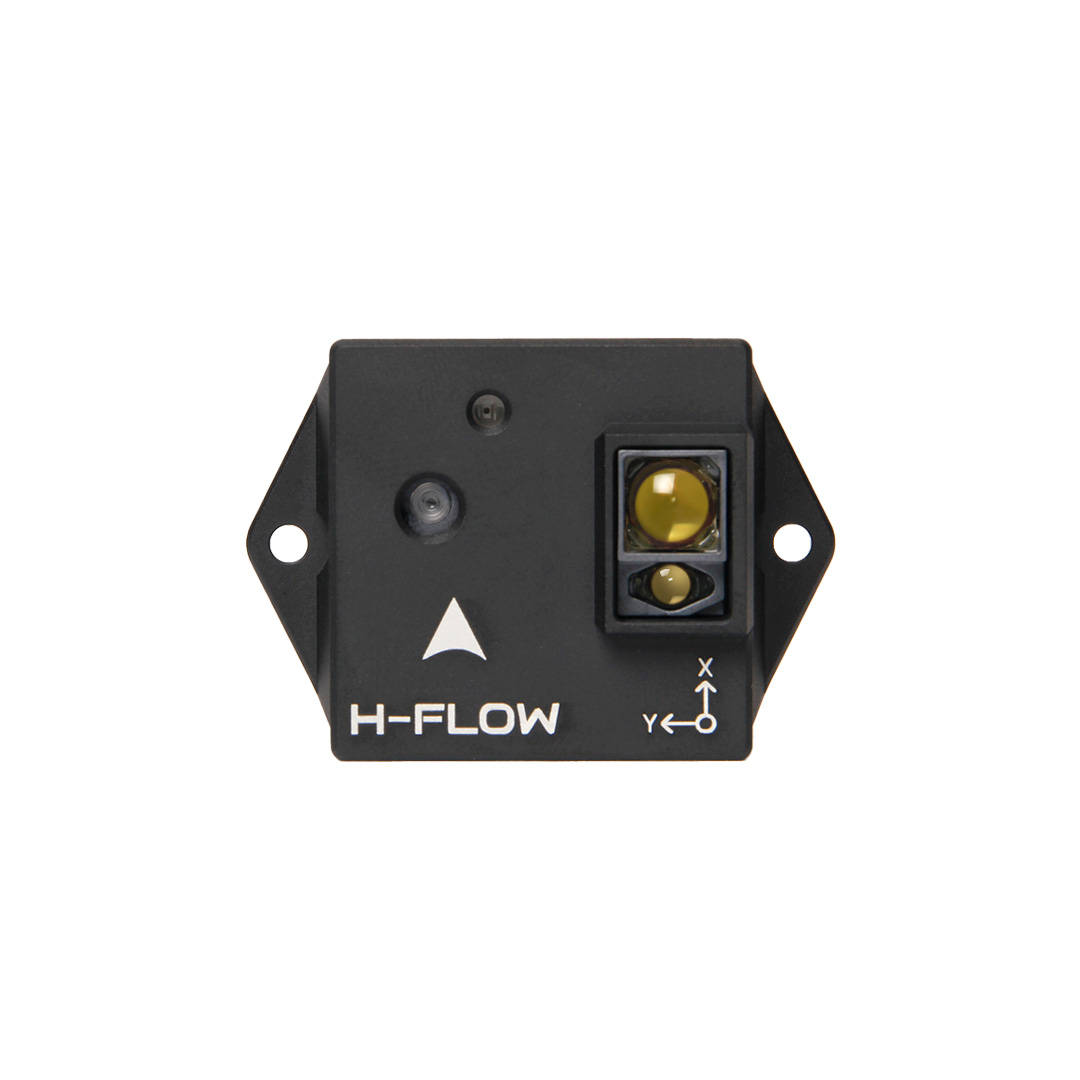

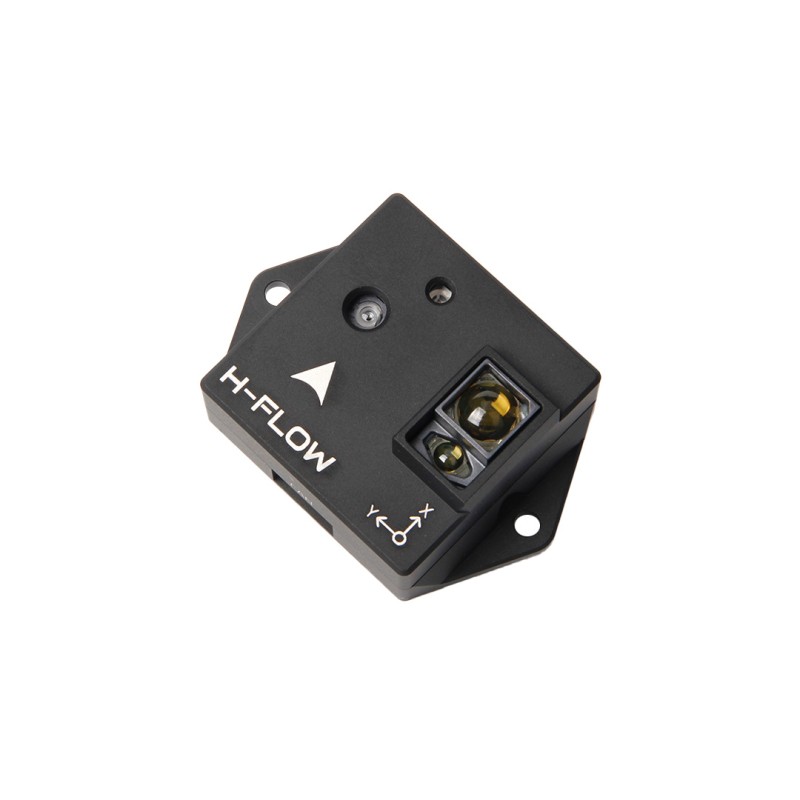

Holybro H-Flow Integrated Optical Flow and Rangefinder Module with DroneCAN Protocol

Name: Holybro HFlow Integrated Optical Flow and Rangefinder Module with DroneCAN Protocol
Brand: Holybro
Price: 125 USD

Wholesale Holybro H-Flow Integrated Optical Flow and Rangefinder Module with DroneCAN Protocol from china suppliers

Brand Name : Holybro

Model : H type

Weight : 50g

Color : Balck

Product name : Holybro H-Flow

MOQ : 1pcs

Material : Plastic

private mold : No

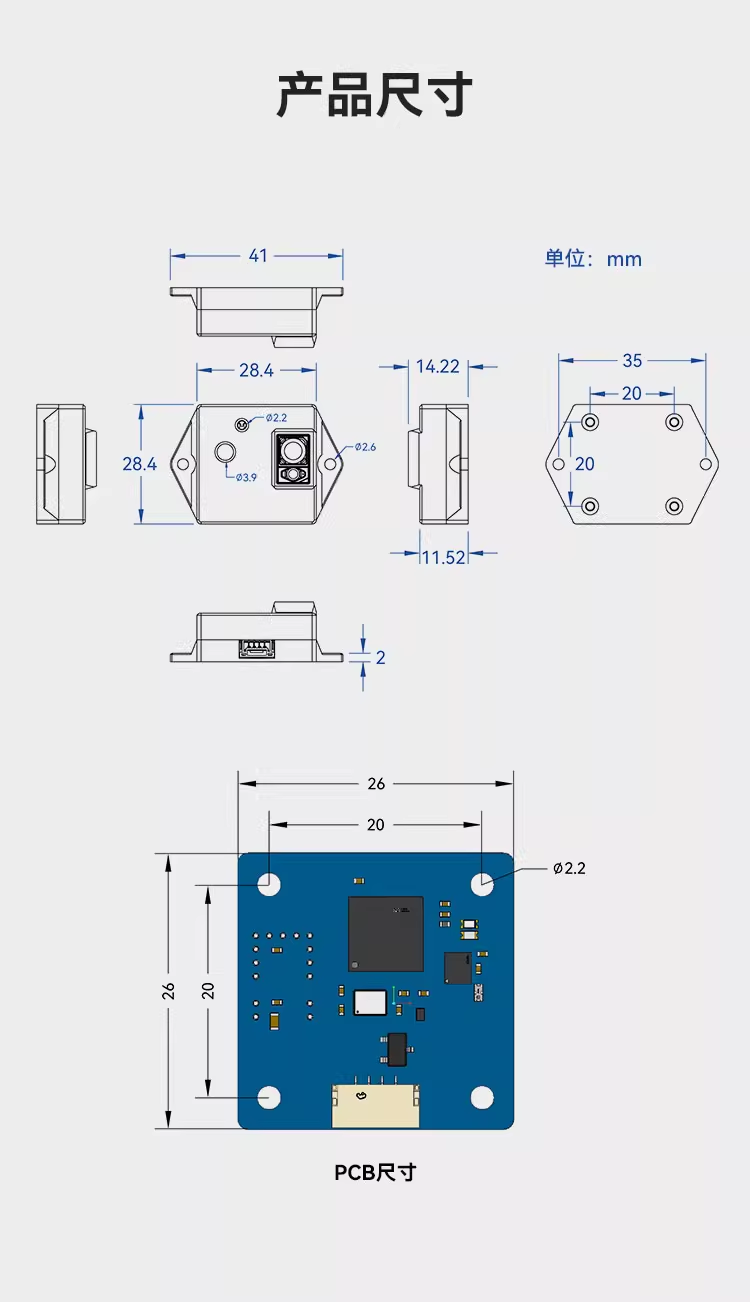

Size : 46.5*40MM

Place of Origin : Hubei, China

Price : $125 / piece

MOQ : 1 piece

Suitable for : RC Parts

compatible brand : Others

Contact Now

Product Description

Feature
* Integrated Optical Flow and Rangefinder Module
* PixArt Optical Flow Sensor for Accurate Motion Tracking
* Broadcom ToF Sensor for Precise Distance Measurement
* Infrared LED for Optical Low-Light Performance
* DroneCAN Protocol

Specification
* PixArt PAA3905E1 Optical Flow Sensor * Tracks under low light conditions of >5 lux
* Effective Viewing angle up to 42°
* Wide working ranges from 80mm up to 30m
* Up to 7.4 rad/s
* 40mW IR LED built onto the board for improved low-light operation

* Broadcom AFBR-S50LV85D Time-of-Flight Distance Sensor * Integrated 850 nm laser light source
* Field-of-View (FoV) of 12.4° x 6.2° with 32 pixels
* Typical distance sensing range up to 30m
* Operation of up to 200k Lux ambient light
* Works well on all surface conditions
* Transmitter beam of 2° x 2° to illuminate between 1 and 3 pixels

* InvenSense ICM-42688-P 6-Axis IMU
* STM32F412CEU6 MCU
* Pixhawk Standard CAN Connector (4 Pin JST GH)
* Compact Form Factor
* Software-Controlled CAN Termination

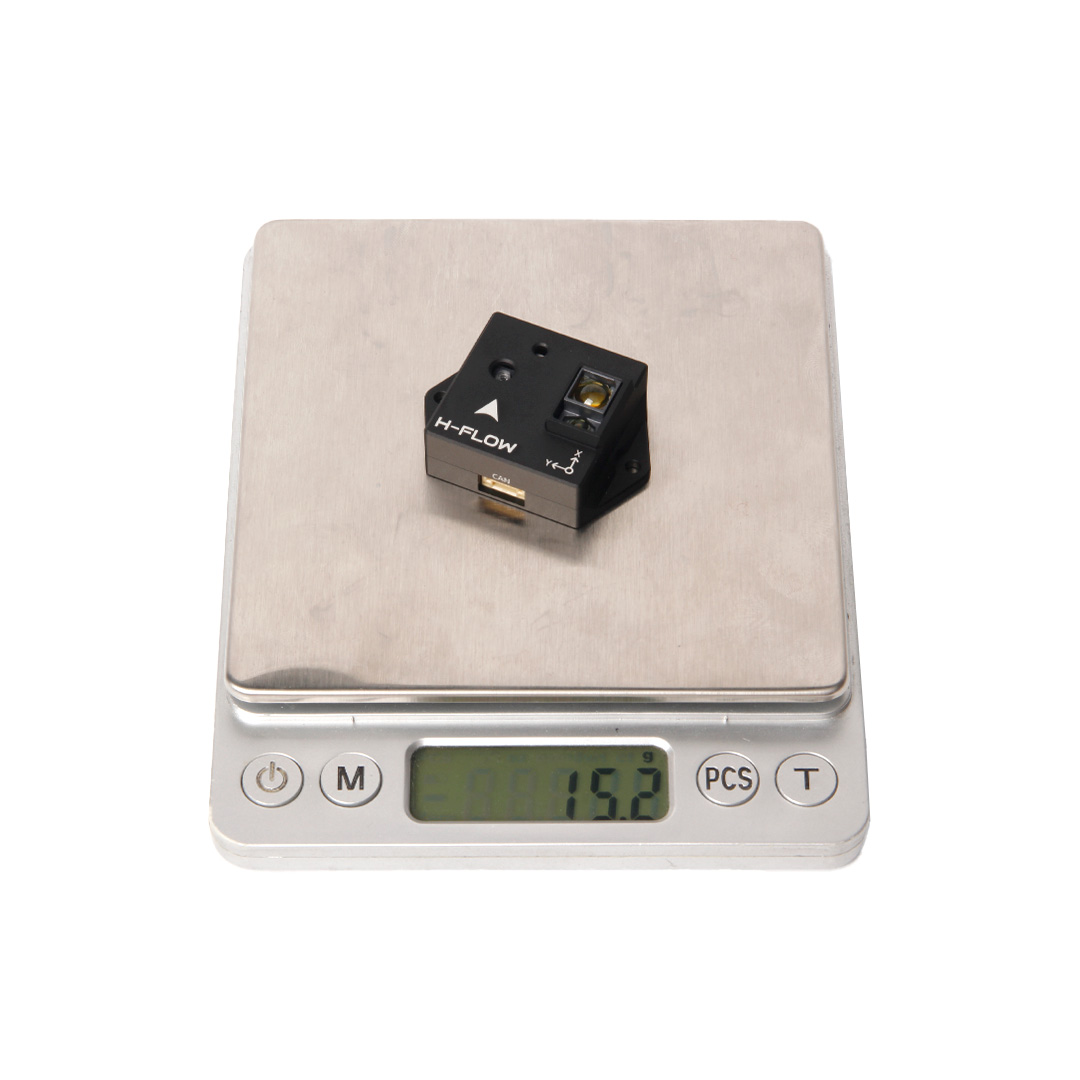

* Weight: 15.2g (3.5g without casing)

Reference Links
* Setup Guide
* Firmware Setup & Upgrade
* Pinout
* AFBR-S50LV85D Datasheet

Package Includes:
* 1x H-Flow
* 4-pin GH cable
* 2x M2.5 Screws
* 2x M2.5 Nylon Locking Hex Nuts
