CUAV 7-Nano Controller H7 Processor Dual IMUs Redundant Design Laminated Compact Size For Drone Open Source PX4 Ardupilot

Name: CUAV 7Nano Controller H7 Processor Dual IMUs Redundant Design Laminated Compact Size For Drone Open Source PX4 Ardupilot
Brand: CUAV
Price: 120 USD

Wholesale CUAV 7-Nano Controller H7 Processor Dual IMUs Redundant Design Laminated Compact Size For Drone Open Source PX4 Ardupilot from china suppliers

Place of Origin : China, Guangdong China

Operating Voltage : 4.5 ~ 5.5 V

UART : 4

Price : $120-132 / piece

Brand Name : CUAV

GPS : 2

Barometer : ICP-20100/BMP581

Compass : IST8310

Material : Metal

MCU : STM32H753 480 MHz 2Mb Flash

compatible brand : Others

private mold : Yes

Accelerometer/Gyroscope : IIM-42652/BMI088

Weight : 33.8g

MOQ : 2 pieces

Support : PX4/Ardupilot

Contact Now

Product Features
Support	PX4/Ardupilot
UART	4
Material	Metal
place of origin	Guangdong, China
GPS	2
Compass	IST8310
Weight	33.8g
Accelerometer/Gyroscope	IIM-42652/BMI088
brand name	CUAV
Operating Voltage	4.5 ~ 5.5 V
private mold	Yes
Barometer	ICP-20100/BMP581
MCU	STM32H753 480 MHz 2Mb Flash
Operating temperature	-20 ~ 85. c

CUAV 7-Nano Controller H7 Processor Dual IMUs Redundant Design Laminated Compact Size for Drone Open Source PX4 Ardupilot

Product Description

7-Nano Controller Feature:
          -- Double floating point arithmetic H7 processor,
-- operating frequency up to 480 MHz

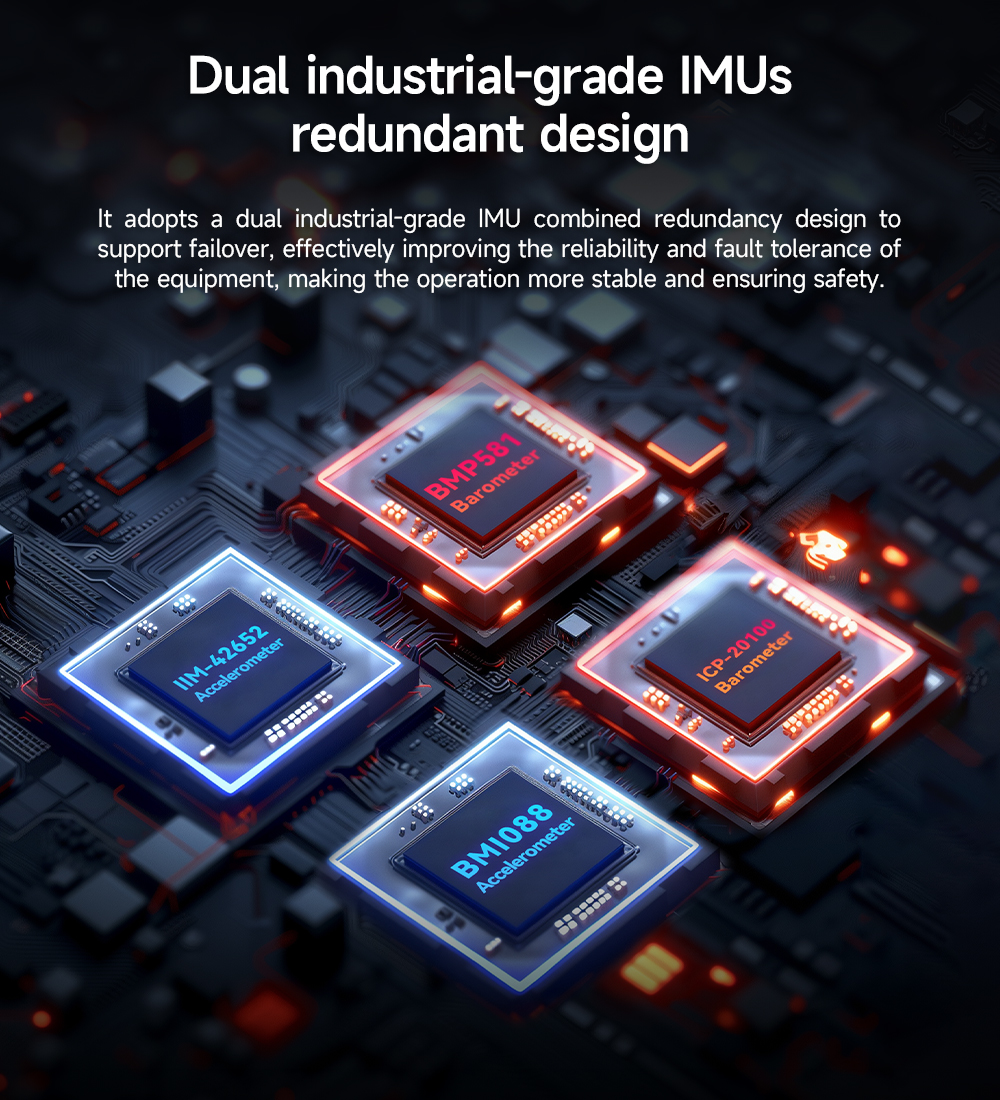

-- New dual industrial-grade IMUs redundant design

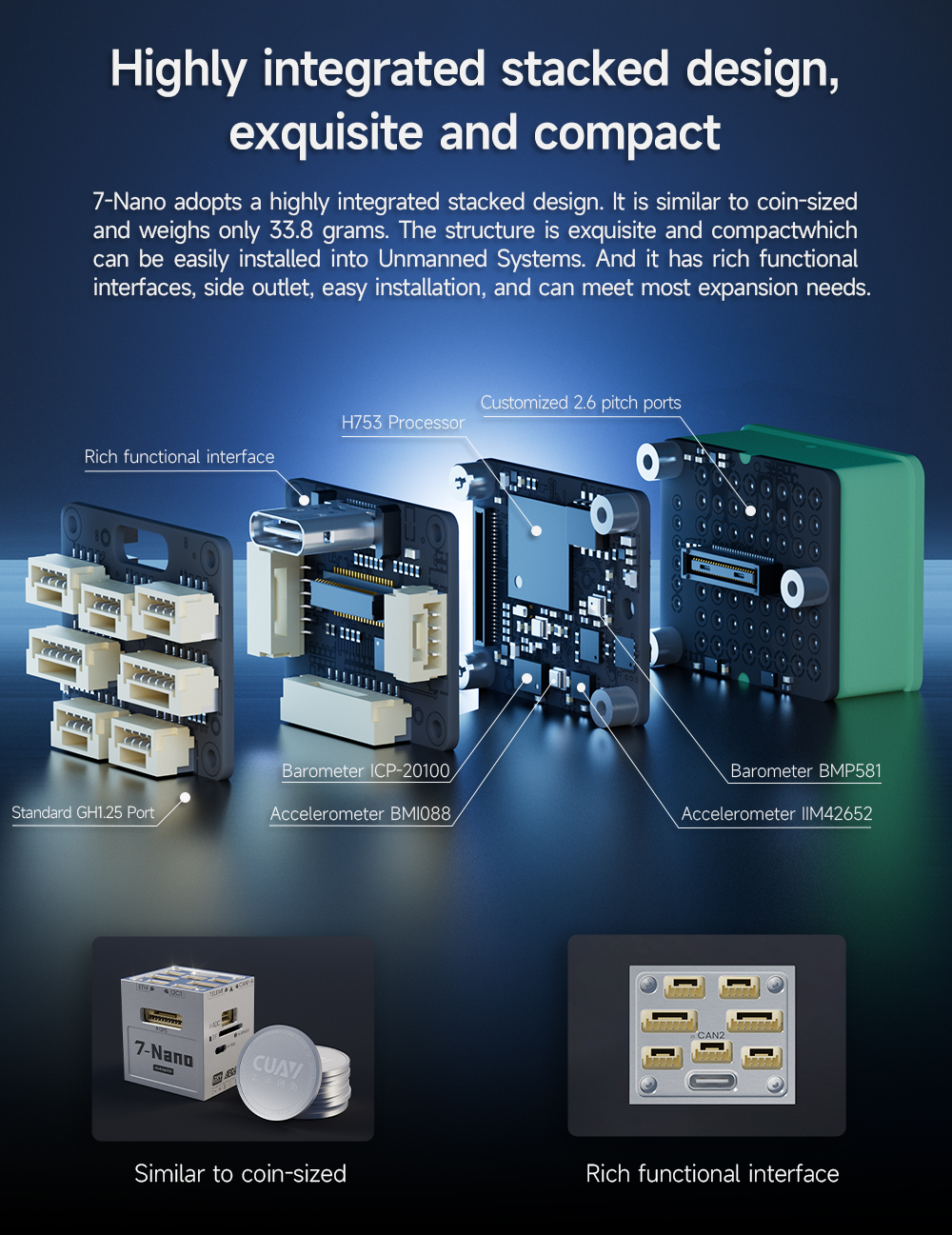

-- Laminated design, compact size and rich interfaces
-- Integrated Ethernet interface, supporting
-- communication with on-board computers
-- Supports 5V/3.3V PWM configuration output
-- Compatible with Ardupilot and PX4 firmware



          Introduction:

7-Nano is developed for miniaturized unmanned system equipment. It is independently developed and produced by CUAV. It innovatively adopts a laminated design and integrates a high-performance STM32H7 processor, dual redundant industrial-grade IMUs and rich and complete expansion interfaces in a very small space. It supports Ethernet communication interfaces, which can realize the low-latency and large-bandwidth real-time communication between controllers and various components of unmanned system.

Main Parameter
Processor	STM32H753(Arm Cortex -M7,480MHz, 2MB FLASH)
Sensors
Acce&Gyro	IIM-42652/BMI088
Compass	IST8310
Barometer	ICP-20100/BMP581
Interfaces
I2C	3
PWM OUT	14 (Configurable for 3.3V / 5V)
RC IN	1 (Support PPM SBUS DSM)
RSSI	PWM or 3.3V analog voltage
CAN BUS	2
Power IN	1
Safety Switch	1
GPS 2	1
ADC	ADC3.3 & ADC6.6
DEBUG	1
USB	Type-C
Ethernet	1
Rated Voltage	4.5 ~ 5.5 V
USB Voltage	4.75 ~ 5.25 V
Servo Voltage	0 ~ 10 V
Working Temp	-20 ~ 85 °C
Humidity	5% ~ 95%(Does not condense)

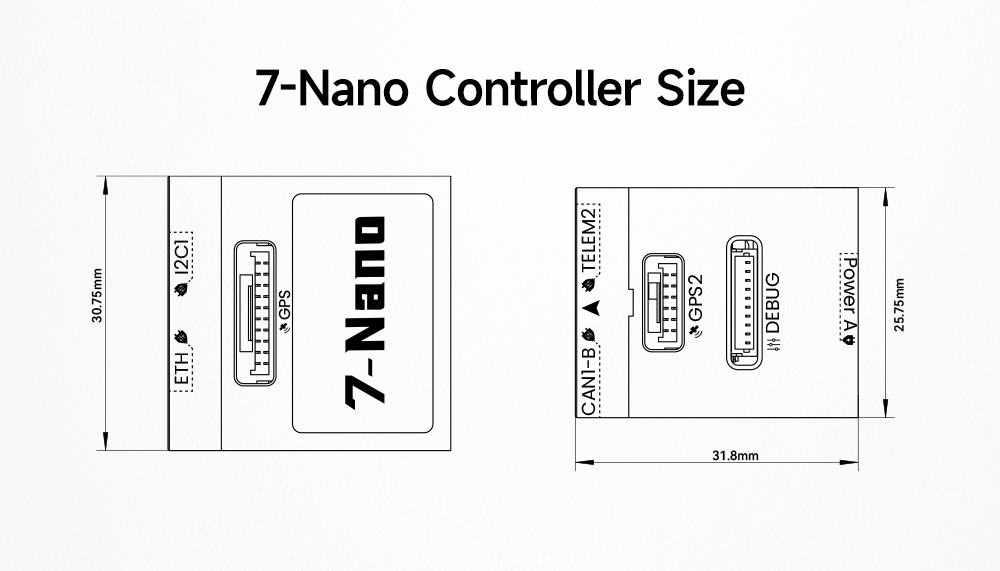

Size	30.75 x 31.80 x 25.75mm
Weight	33.8g
7-Nano PDB Power Module
Rated Voltage	12 ~ 70 V
Detection Current(MAX):	79.2 A
BEC OUT	5.3V / 4A
Voltage and Current Accuracy	±0.2V / 0.5A
Splitter	Divided into six
Interfaces	XT60 / GH1.25 6Pin
Weight	17g

FAQ

Q1: Are you a factory or a trading company? What is the minimum order quantity? Yes, we are trading company,have authorized agents for multiple brands direct salesand have some inventory items. You can order 1 piece for testing.

Q2: ls it possible to get a sample?
We offer sample when you pay sample fee.

Q3: How much for the shipping cost?
According to your quantity and country. We are check the freight for you. and choosebest shipping way.

Q4: How long time can iget my package?
Usaually, the ready time is 3-5 days, the shipping time is 3-7 days

Q5: Can you provide OEM&ODM services ?
Of course, including software, packaging, product logos, etc. For more details, pleaseconsult customer service,

Q6: How do you ensure the quality of products?
Our products comply with the 1S09001 quality system and CE/FCC/ROHS standardsAll of our products undergo strict quality control inspections during the productionprocess. Especially for exported products, a 72 hour aging test is required to ensurethat there are no issues before shipment.

Q7:How do you arrange the transportation?
lf the sample order is recommended to be shipped by express delivery (7-10 days) orair freight (10-15 days), and if mass production is recommended, sea freight is morefavorable.Please consult customer
service for more details!

Any other question, please feel free to contact us. Thanks
