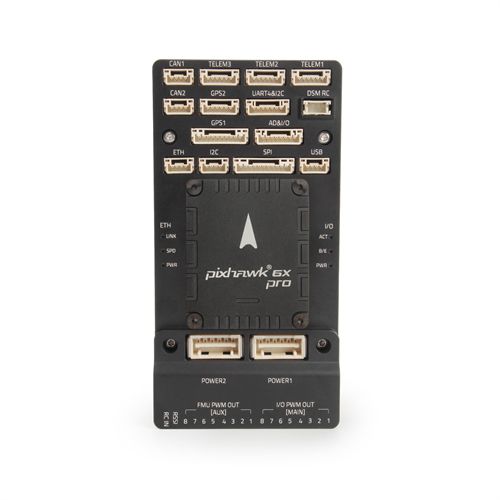

Holybro Pixhawk 6X Pro Autopilot H753 Flight Controller Module Standard Base V2A/ V2B PM02D For RC FPV Drone

Name: Holybro Pixhawk 6X Pro Autopilot H753 Flight Controller Module Standard Base V2A V2B PM02D For RC FPV Drone
Brand: HolyBro
Price: 705 USD

Wholesale Holybro Pixhawk 6X Pro Autopilot H753 Flight Controller Module Standard Base V2A/ V2B PM02D For RC FPV Drone from china suppliers

Place of Origin : China, GuangdongChina

Material : Metal

Accel : ADIS16470

FMU Processor : STM32H753

Brand Name : HolyBro

Servo Rail Input : 0-36V

Max input voltage : 6v

Ma-g : BMM150

compatible brand : Others

USB Power Input : 4.75~5.25V

Price : $705-721 / box

Barometer : ICP20100

Telem1 output current limiter : 1.5A

private mold : No

MOQ : 1 box

IO Processor : STM32F103

Contact Now

Product Features
IO Processor	STM32F103
Telem1 output current limiter	1.5A
Servo Rail Input	0-36V
Material	Metal
Accel	ADIS16470
Ma-g	BMM150
place of origin	Guangdong,China
FMU Processor	STM32H753
brand name	HolyBro
Max input voltage	6v
private mold	No
Barometer	ICP20100
USB Power Input	4.75~5.25V
Flight Controller Module	38.8 x 31.8 x 30.1mm

Features

         * High-performance ADIS16470 Industrial IMU with high accelerometer dynamic range (±40 g), perfect for accurate motion sensing in demanding UAV applications * All New advanced durable vibration isolation material with resonance frequency in the higher spectrum, ideal for industrial and commercial drone applications * Triple redundant IMU & double redundant barometer on separate buses * High performance STM32H753 Processor * Modular flight controller: separated IMU, FMU, and Base system * Safety-driven design incorporates sensors from different manufacturers and model lineups * Independent LDO powers every sensor with independent power control. * Ethernet interface for high-speed mission computer integration * Temperature-controlled IMU board, allowing optimum working temperature of IMUs


Product Detail

         Processors & Sensors FMU Processor: STM32H753 32 Bit Arm Cortex-M7, 480MHz, 2MB flash memory, 1MB RAM IO Processor: STM32F103 32 Bit Arm Cortex-M3, 72MHz, 64KB SRAM On-board sensors Accel/Gyro: ADIS16470 ±40g, Vibration Isolated, Industrial IMU Accel/Gyro: IIM-42652 ±16g, Vibration Isolated, Industrial IMU Accel/Gyro: ICM-45686 with BalancedGyro Technology ±32g, Hard Mounted Barometer: ICP20100 Barometer: BMP388 Mag: BMM150 Electrical data Voltage Ratings: Max input voltage: 6V USB Power Input: 4.75~5.25V Servo Rail Input: 0~36V Current Ratings: Telem1 output current limiter: 1.5A All other port combined output current limiter: 1.5A Mechanical data Dimensions Flight Controller Module: 38.8 x 31.8 x 30.1mm Standard Baseboard: 52.4 x 102 x 16.7mm (Aluminum) Mini Baseboard: 43.4 x 72.8 x 14.2 mm Weight Flight Controller Module: 50g Standard Baseboard: 72.5g (Aluminum) Mini Baseboard: 26.5g

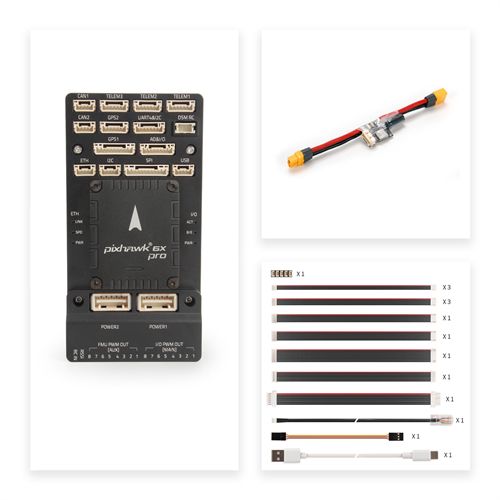

Item Packing

Pixhawk 6X Pro Flight Controller Module	x 1
Pixhawk Standard Baseboard	x 1
PM02D HV Power Module	x 1
Cable Set	x 1

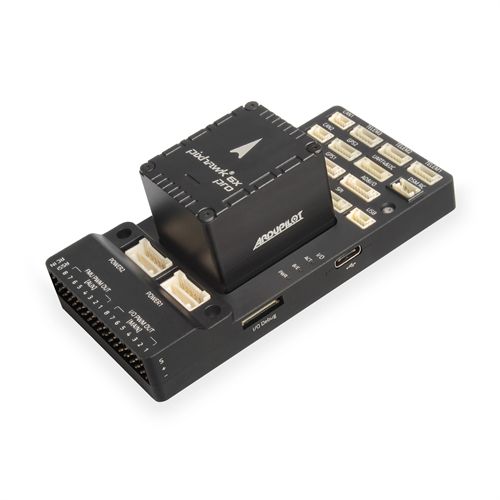

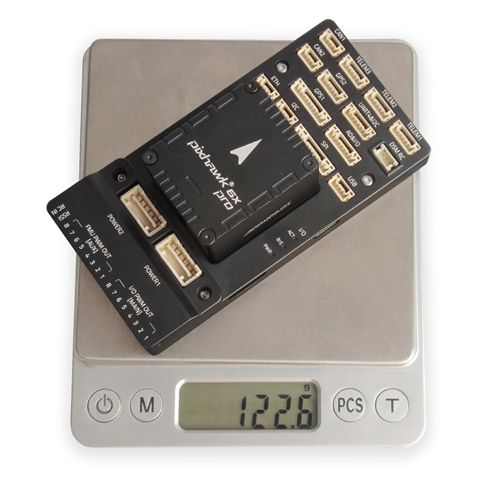

Detailed Images

Holybro Pixhawk 6X Pro Autopilot H753 Flight Controller Module Standard Base V2A/ V2B PM02D For RC FPV Drone
