Cuav Lba 3 Drone Video Link 4g Radio Telemetry Module 33dbm Fpv Long Range Data Transmitter Uav Wireless Transmission

Name: Cuav Lba 3 Drone Video Link 4g Radio Telemetry Module 33dbm Fpv Long Range Data Transmitter Uav Wireless Transmission
Brand: CUAV
Price: 2 USD

Wholesale Cuav Lba 3 Drone Video Link 4g Radio Telemetry Module 33dbm Fpv Long Range Data Transmitter Uav Wireless Transmission from china suppliers

Communication bandwidth : 30Mbps to 100Mbps

Frequency band 2 : 806 to 826MHz

RF power : 5W max

Transmit Range 2 : 800MHz 5W 45KM

Place of Origin : China, GuangdongChina

MOQ : 1 piece

private mold : Yes

Size : Base Unit 220 mm*120 mm *50mm Air Unit 88 mm*50mm*

Frequency band 1 : 1420 to 1448MHz

compatible brand : CUAV

Material : Metal

Brand Name : CUAV

Transmit Range 1 : 1.4 GHz 5W 45KM

Weight : Base Unit 1500g Air Unit 150 to 200g

Price : $2,399 / piece

Encryption : Support AES265

Contact Now

Product Features
Size	Base Unit 220 mm120 mm 50mm Air Unit 88 mm50mm20mm
Material	Metal
place of origin	Guangdong,China
Encryption	Support AES265
Weight	Base Unit 1500g Air Unit 150 to 200g
Frequency band 2	806 to 826MHz
Frequency band 1	1420 to 1448MHz
brand name	CUAV
Communication bandwidth	30Mbps to 100Mbps
RF power	5W max
private mold	Yes
Transmit Range 1	1.4 GHz 5W 45KM
Transmit Range 2	800MHz 5W 45KM

CUAV LBA 3 Drone Video Link 4G Radio Telemetry Module 33dBm FPV Long Range Data Transmitter UAV Wireless Transmission FPV Drone

LBA 3 Communication Micro Base Station:

1-- Developed based on advanced LTE technology

2-- 30Mbps large bandwidth, support star network

3-- AES encryption technology

4-- IP67 industrial three-proof design, no pressure for outdoor work

5-- Support formation flight

Introduction:

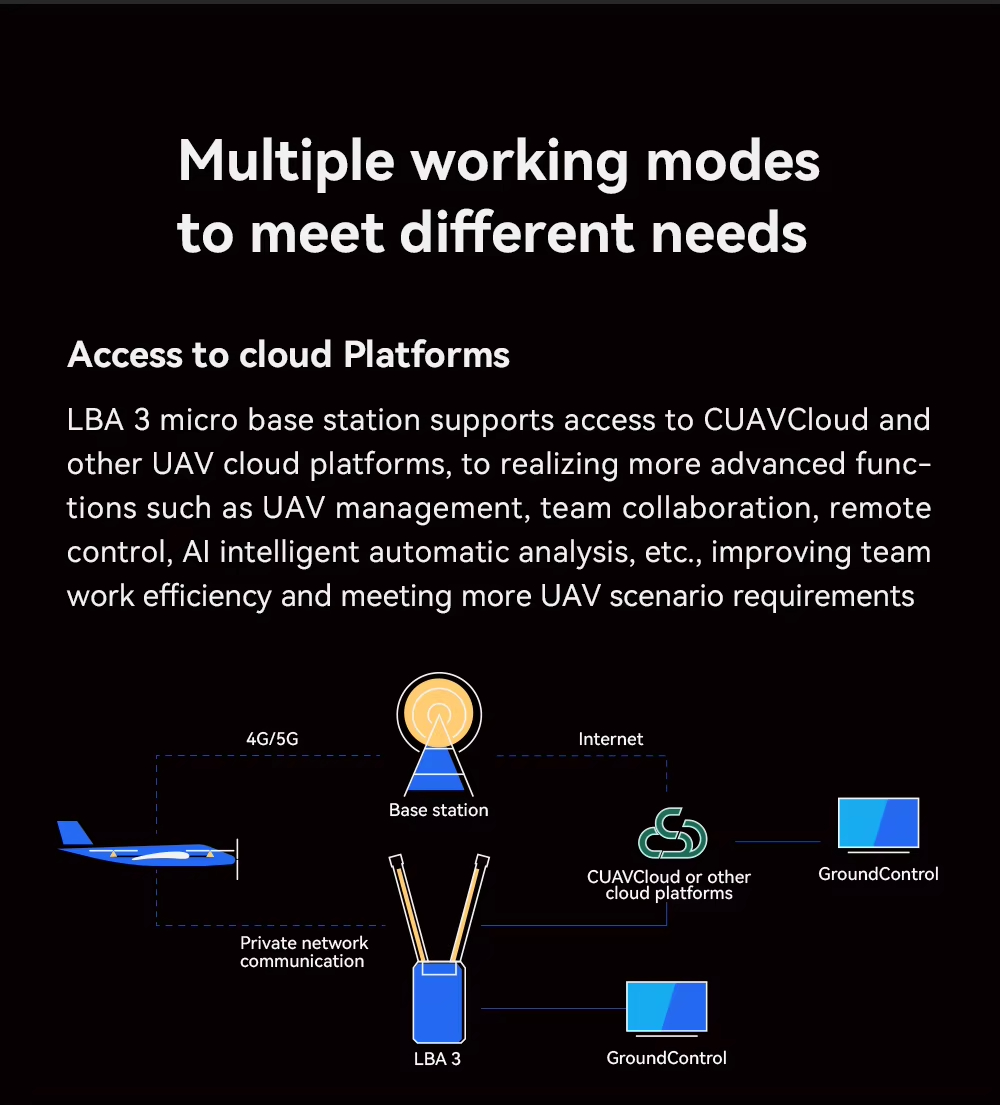

The LBA 3 private network micro-base station system is a high-performance long-distance and large-bandwidth link system solution independently developed by Leixun Innovation. It consists of a LBA 3 Base, an air terminal and an AG gateway. It has long-distance communication coverage capability and 30Mbps bandwidth. equipped with ground stations such as CUAV LGC, it can realize formation flight.

It is ideal for long-distance communication links for industrial Unmanned Systems equipment.

Specification

Main Parameter
Technical Standard	Based on LTE wireless communication standard
Anti-Jamming	Dynamic frequency hopping, intelligent frequency hopping within the frequency band
Frequency Band	1.4G version1420-1448MHz 800M version806-826MHz
Transmit Power	33dBm(Typical value
Bandwidth	default20Mbps(10MHz)30Mbps(MAX, 20MHz)

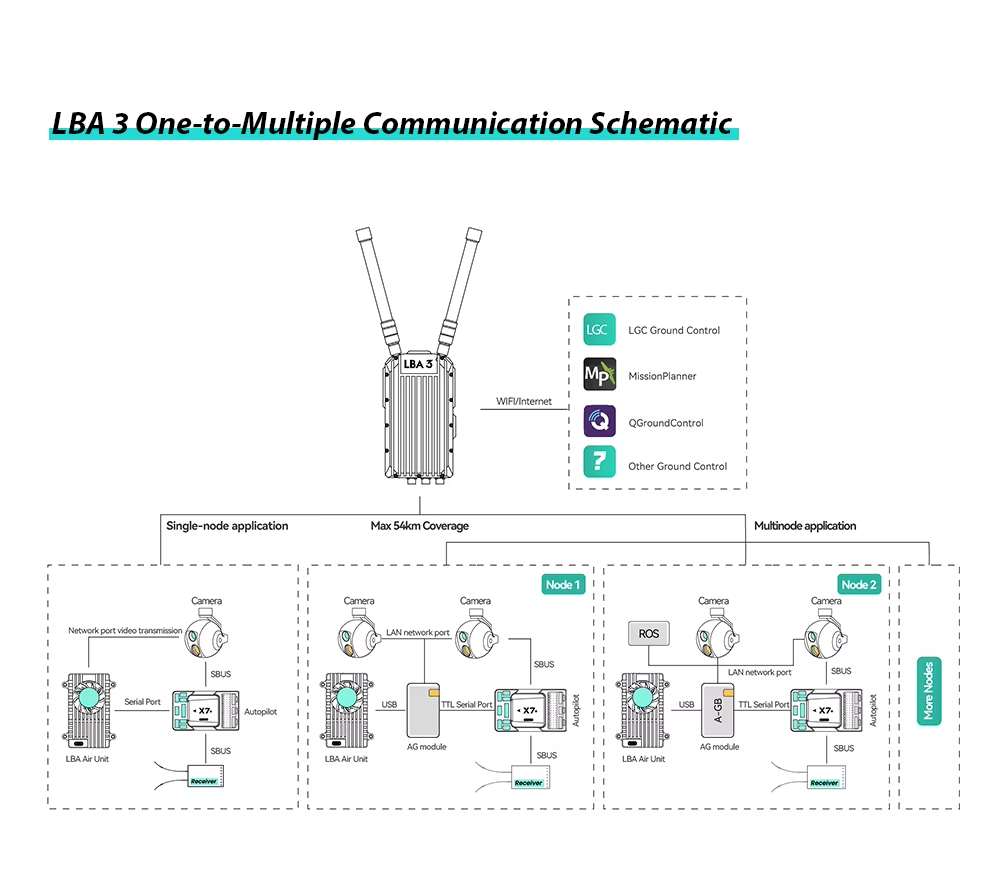

Operating Modes	Star network, point-to-point
Encryption	AES265
Modulation	QPSK16QAM64QAM
Transmission Delay	≤ 150ms
Management Interface	LBA3 BASE is managed by WEB LW140/800 is managed by AG (WEB) gateway
LTE Network Type	LBA3 BASE built-in full Netcom 4G module Support TD-LTE/FDD LTE/TD-SCDMA/WCDMA
Operating Temperature	-15 ~ 65°
Operating Voltage	LBA3 BASE20~60V (Standard power consumption:24V 1.5A) POE module supports 100~240V Utility Power LW140/80020~60V (Standard power consumption:24V 1A)
Size	LBA3 BASE220.0 x 120.0 x 50.0mm LW140/80090.0 x 65.0 x 26.4mm
Weight	LW140/800155g LBA3 BASE1.65kg
Interface	LW140/800 Antenna(MCX-KE) x 2 POWER(5023520200 to XT30) x 1 RJ45 x 1(5025850470) UART x 1 USB x 1 LBA3 BASE N type antenna x 2 Power(SF12 to XT60) x 1 POE lan(SF12 to RJ45 Plug) x 1 LAN(SF12 to RJ45 Plug) x 1 AAT(SF12) x 1
Degree of Protection	LBA3 BASEIP67 LW140/800IP20
