Cuav X7+ Pro Pixhawk Flight Controller with Gps Neo3 Compatible Ardupilot 4.10 4 1.12.3 for Drone Zld

Name: Cuav X7 Pro Pixhawk Flight Controller with Gps Neo3 Compatible Ardupilot 410 4 1123 for Drone Zld
Brand: CUAV
Price: 481.55 USD

Wholesale Cuav X7+ Pro Pixhawk Flight Controller with Gps Neo3 Compatible Ardupilot 4.10 4 1.12.3 for Drone Zld from china suppliers

Description : CUAV X7+ Pro Intelligent Control

Operating Voltage : 4.5V ~ 5.5V

compatible brand : CUAV

private mold : No

Product name : CUAV X7+ Pro flight control

Brand Name : CUAV

MOQ : 2 pieces

Place of Origin : China, GuangdongChina

Weight : 101g

Accel : ADIS16470 + ICM-42688-P + ICM-20689

Barometer : MS5611 + MS5611

Material : Plastic

Processor : STM32H743 32bit Arm Cortex-M7 480MHz 2MB Flash 1MB

USB Power Input : 4.75V ~ 5.25V

compatiable with : UAV Drone

Price : $481.55-528.35 / piece

Contact Now

Product Features

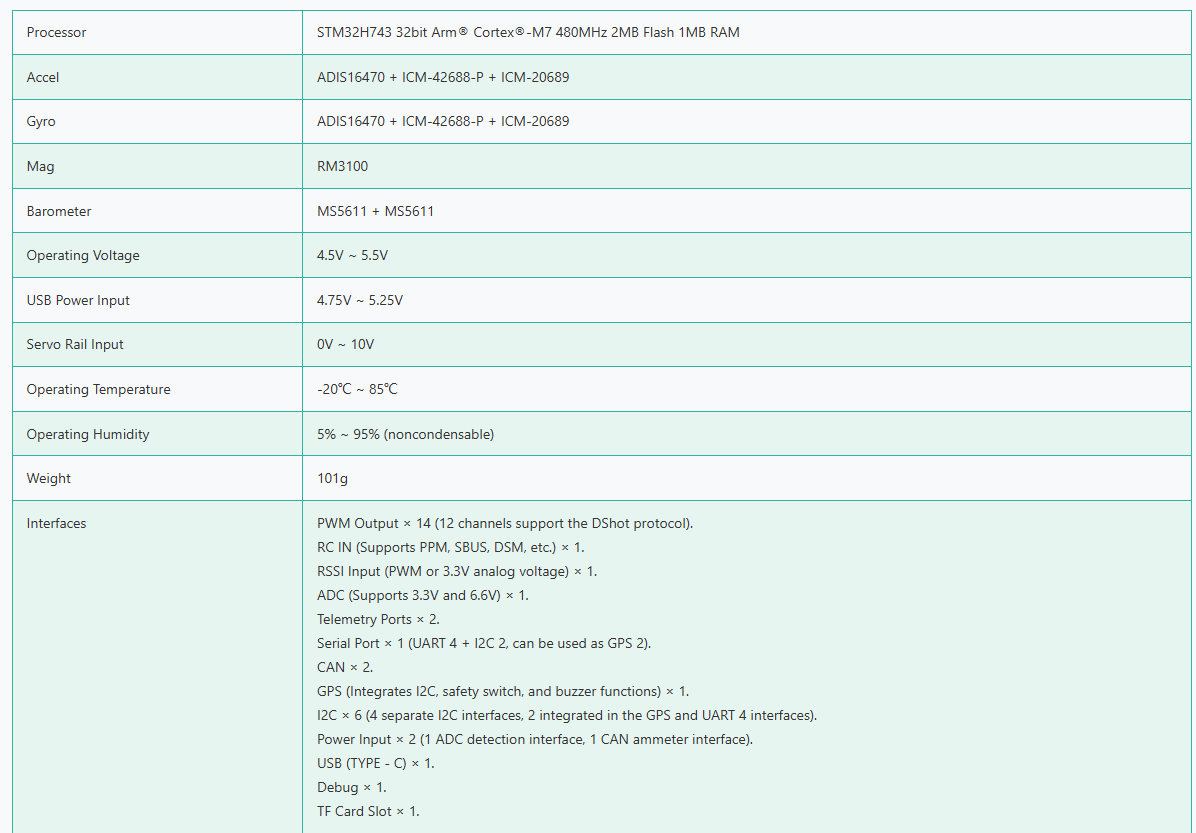

Processor	STM32H743 32bit Arm Cortex-M7 480MHz 2MB Flash 1MB RAM
Description	CUAV X7+ Pro Intelligent Control
Material	PVC
Accel	ADIS16470 + ICM-42688-P + ICM-20689
place of origin	Guangdong,China
Weight	101g
brand name	CUAV
Product name	CUAV X7+ Pro flight control
compatiable with	UAV Drone
Operating Voltage	4.5V ~ 5.5V
private mold	No
Barometer	MS5611 + MS5611
USB Power Input	4.75V ~ 5.25V

CUAV X7+ Pro Pixhawk Flight Controller with GPS NEO3 Pro Compatible with ArduPilot 4.10 Pixhawk 4 1.12.3 for Drone ZLD

Product Description

Product Name	CUAV X7 Pro Pixhawk Autopilot Flight Controller with GPS NEO3 Pro Compatible with ArduPilot 4.10 Pixhawk 4 1.12.3 for Drone
Material	Plastic
Function	Flight control
Detail information	CUAV X7 Pro Intelligent Control . Built-in vibration damping, adapt to various harsh operating environments. . Triple-redundant IMUs with intelligent fault switching capability. . Supports temperature compensation for enhanced IMU performance. . CAN bus-compatible current meter support. . Modular design with customizable carrier board options.

Cuav X7+ Pro Pixhawk Flight Controller with Gps Neo3 Compatible Ardupilot 4.10 4 1.12.3 for Drone Zld

Details Images

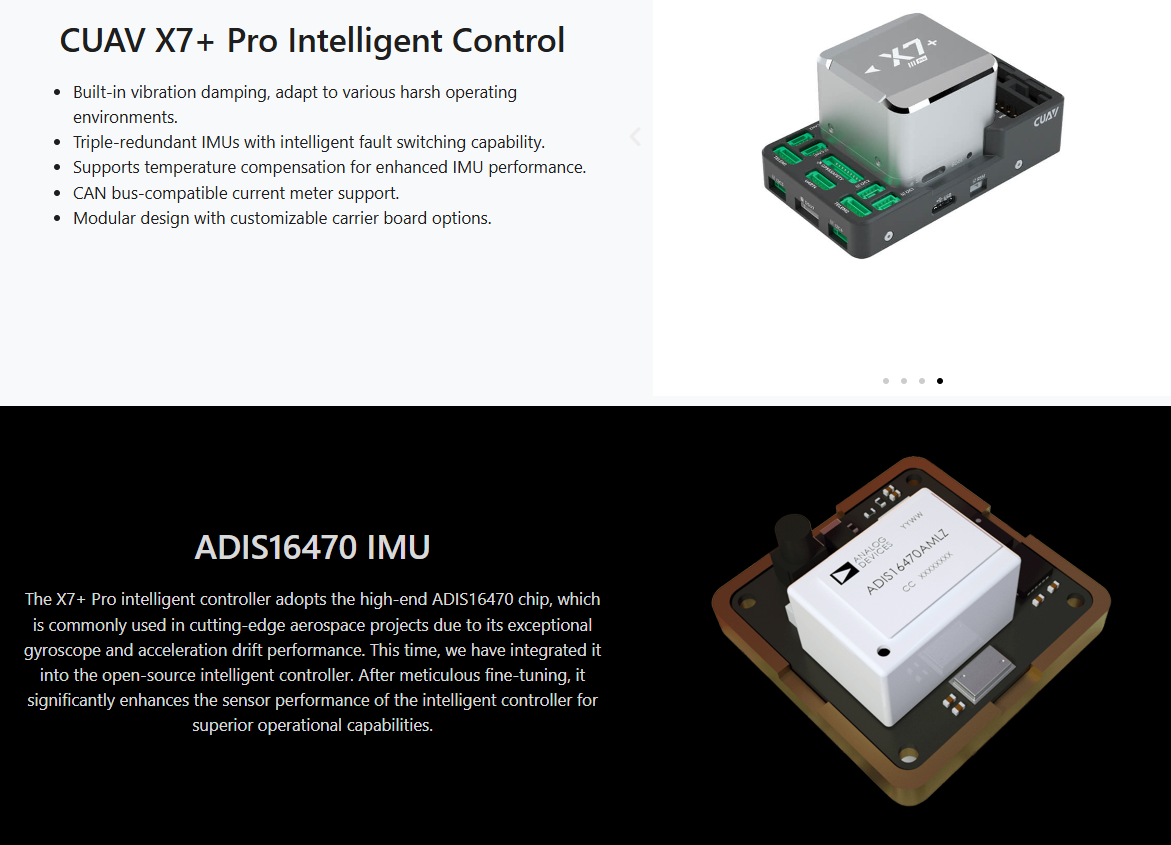

CUAV X7 Pro Intelligent Control
. Built-in vibration damping, adapt to various harsh operating environments.
. Triple-redundant IMUs with intelligent fault switching capability.
. Supports temperature compensation for enhanced IMU performance.
. CAN bus-compatible current meter support.
. Modular design with customizable carrier board options.

PWM Output x 14 (12 channels support the DShot protocol).
RC IN (Supports PPM, SBUS, DSM, etc.) x 1.
RSSI Input (PWM or 3.3V analog voltage) x 1.
ADC (Supports 3.3V and 6.6V) x 1.
Telemetry Ports x 2.
Serial Port x 1 (UART 4 I2C 2, can be used as GPS 2).
CAN x 2.
GPS (Integrates I2C, safety switch, and buzzer functions) x 1.
I2C x 6 (4 separate I2C interfaces, 2 integrated in the GPS and UART 4 interfaces).
Power Input x 2 (1 ADC detection interface, 1 CAN ammeter interface).
USB (TYPE - C) x 1.
Debug x 1.
TF Card Slot x 1.
